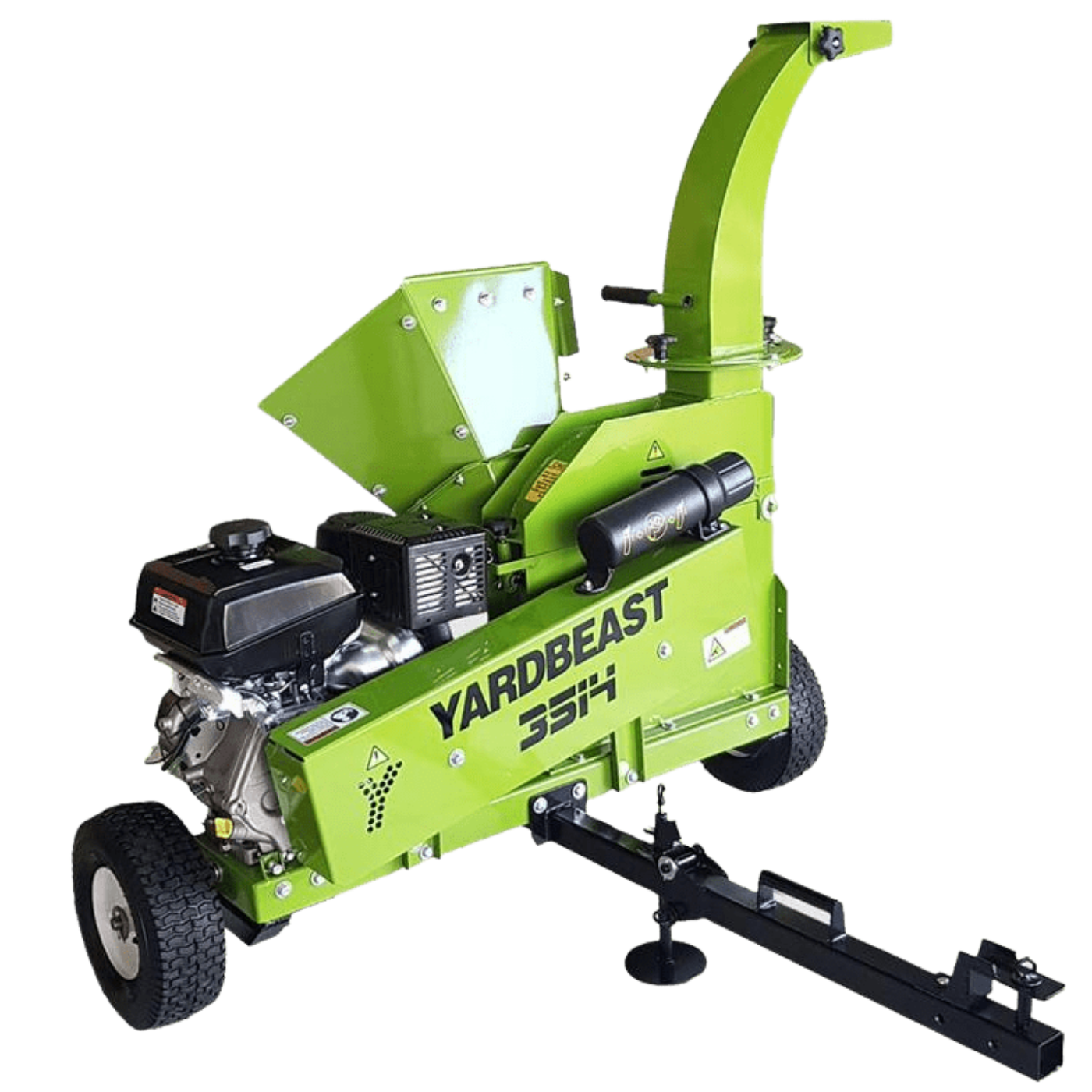

The Yardbeast 3.5” is a heavy-duty chipper is powered by 429CC Kohler CH440 Engine, capable of delivering the torque needed. It counts with a centrifugal clutch that provides protection to the engine.
It’s offered in two versions: ATV towable or Hand Towable. The gooseneck discharger gives you the convenience that you need. The ATV tongue can be configured for trailer coupler and standard tongue hitch most commonly used on Garden tractors.
Features
Chipping capacity | 3.5" |
---|---|
Rotor RPM | 3,000 |
Rotor Weight | 56 lbs. |
Blade | D2 Tool Steel Blade |
Blade dimensions | 5.82" x 2.33" |
Rotor Construction | 7/16" wafer front disc with 1/4" rotor vanes |
Flywheel | 17.32" |
Feed Hopper | 24" x 11" |
Frame construction | 7-ga steel. Weld seams all around |
Bearing units | SKF® roller sealed bearings /custom steel housing |
Discharge height | 54.7" |
Control | Discharge deflector |
Chipper Weight (w/engine) | 320 lbs |
Make | Kohler CH440 Command Pro® 14HP engine |
RPM | 3,600 |
Torque | 19.8ft-lb @ 2,400RPM |
Dry Weight | 72.8 Lbs |
Displacement | 429 cc |
Oil Capacity | 1.4 quarts (1.3 Lts) |
Fuel Capacity | 7.0 Lts |
Emissions | CARB Tier III certified |
