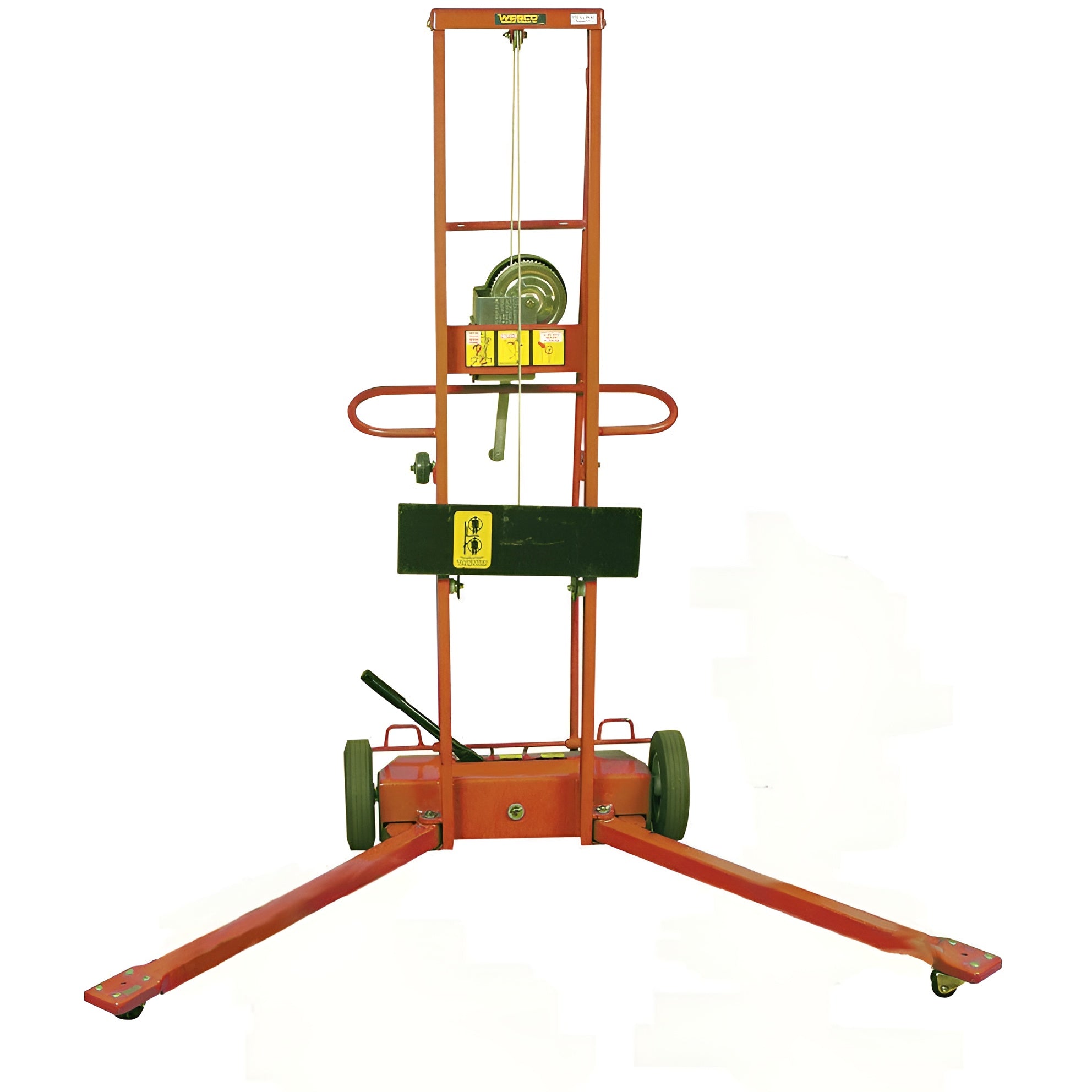

Wesco TRIPLE TRUCK, MODEL TTF BASE UNIT SHOWN WITH OPTIONAL FORKS - 261160

Wesco TRIPLE TRUCK, MODEL TTF BASE UNIT SHOWN WITH OPTIONAL FORKS - 261160

Features

• 1-year warranty. Patent pending design.
• Handles most standard rim 30, 55 and 85 gal. steel, poly and fiber drums with 261161 Gator Grip® option.
• Manual winch with auto brake.
• Carriage lock, lock carriage in place at any position.
• Easy load rollers assist loading onto a truck bed.
• Low-profile 3" debris deflecting neoprene swivel casters.
• 10" x 2.75" poly hub solid rubber wheels - Part # 150698.
• Wheel lock - pedal activated.
• Lever operated outrigger adjustment - 3 positions.
• Outrigger angle can be changed even under full load.
• Frame only - chose optional Gator Grip® drumgrab, forks or platform attachments.
• HOW TO ORDER
• Frame and attachments ordered separately

1. Purchase basic frame - part # 261160
2. Select lifting attachment

• Gator Grip® Drum Lifter - Part # 261161
• Adjustable Forks - Part # 261162
• Slip-on Platform - Part # 261163 ( requires adjustable fork option)

Videos

Specifications

Drawing

Drawing for Triple Truck (261160)

What Our Experts Think

The Wesco Triple Truck, Model TTF is a versatile and efficient solution for heavy-duty material handling. Here's why it’s a great choice:

• Triple Truck Design: Provides the stability and support needed for transporting large and heavy loads.
• Optional Forks: Customizable with optional forks to suit various lifting and moving needs.
• Heavy Load Capacity: Handles substantial weights, making it ideal for warehouses and industrial environments.
• Durable Construction: Built with high-quality materials for long-lasting performance.
• Efficient Handling: Designed for easy maneuverability, even in tight spaces, improving workflow and productivity.

Q&A

Q: What is the maximum weight capacity?
A: The Triple Truck can handle heavy loads, but specific weight capacity depends on the configuration and forks chosen.

Q: What are the dimensions of the base unit?
A: The base unit's dimensions are designed for optimal stability and load handling, with customizable fork options.

Q: Are the forks included?
A: No, the forks are optional and can be added as per your requirements.

Q: What material is the truck made of?
A: It is made from durable steel to ensure long-lasting performance.

Q: How is the truck operated?
A: The truck is manually operated and designed for easy maneuverability in tight spaces.

Q: What are the primary applications?
A: Ideal for transporting heavy materials, large items, or pallets in warehouses and industrial settings.

Q: Why choose this triple truck?
A: The customizable fork options and strong steel construction make it versatile and efficient for a range of material handling tasks.

Maintenance Tips

• Inspect the Frame and Forks: Check for any cracks, bends, or wear on the truck frame and forks before use.
• Lubricate Moving Parts: Regularly grease the wheels, lift mechanism, and joints for smooth operation.
• Clean After Use: Wipe down the truck and forks to remove dirt, grease, or debris.
• Check Load Limits: Always adhere to the recommended load capacity to prevent overstrain and damage.
• Store Properly: Keep the truck in a dry, secure location to avoid rust and corrosion, especially when not in use.
