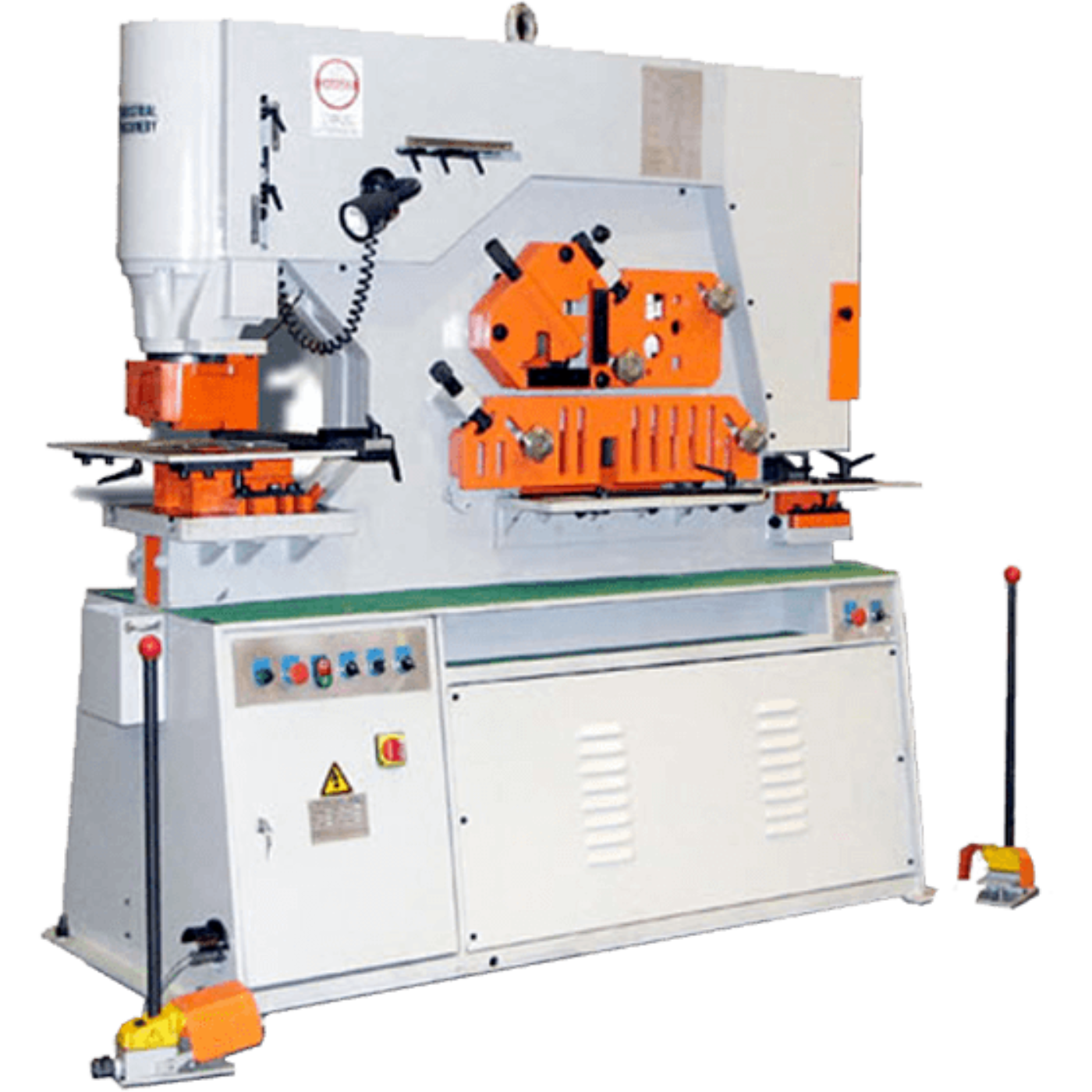

U.S Industrial Machinery 66 Ton Hydraulic Ironworker with Dual Operator Stations Extended 17” punch throat - USHI66T-DO-XT

• Punch station

• Angle shear station

• Flat bar shear station

• Notching station

• Rod shear station

• Electric back-gauge

• Oversize work table with fences

• Press brake attachment

• Magnetic base work light

• Punch slug chute and bucket

• Dual hydraulic cylinders for two-man operation with two moveable foot pedals

• Five workstations: punch, plate shear, angle shear, rod shear and notcher.

• This machine also comes with a press brake attachment.

• Punch station has large two-piece gauging table with fence

• Punch station has quick acting swing-away stripper with 3 inserts

• Punch station has removable sections for punch leg of channel or I-beam

• Quick change coupling nut and sleeve for punch

• Electric Backgauge, 3’ long

• Electrically interlocked safety guard for notching station

• Magnetic base workstation light

• 7.5 HP, 3-phase operation

• This machine weighs 3,880 lbs.

• Three sets of round punch and die

• Spare parts and tools

Specifications

Punch Stations

• Punching tons : 66

• Punching maximum - Round : 3/4" thick x 1" diameter

• Throat depth : 17"

• Punch and die clearance for gauge thickness  = slip fit to 1/64"

• Punch and die clearance for 1/4" to 1/2" thickness  = 1/32"

• Punch and die clearance for 1/2" to 3/4" thickness  = 1/16"

• Punch and die clearance for 3/4" to 1" thickness  = 3/32"

• Punch and die clearance for 1" and over thickness  = 1/8"

FLAT BAR SHEAR STATION

• Maximum thickness : 5/8" thick x 10" width

• Maximum length : 5/16" thick x 16" width

• Blade length : 16"

ANGLE SHEAR STATION

• Capacity at 90 degrees  : 5" x 5" x 3/8"

• Capacity at 45 degrees  : 2" x 2" x 1/4"

BAR SHEAR STATION

• Round solid bar maximum : 1-3/4"

• Square solid bar maximum : 1-9/16"

RECTANGULAR NOTCHER STATION

• Maximum thickness capacity : Width x Depth x Thick: 3" x 1-1/2" x 5/16"

• Width of notcher top blade : 3-3/16"

• Depth of notcher : 3-13/16"

REQUIREMENTS

• Horsepower :7.5

• Electrical : 220 Volts, 3 phase or 440 Volts, 3 phase

• Full load amps : 25/12.5

• Hydraulic oil type/capacity: Equal to Exxon/Mobil NUTO-H46 - 19 gal

• Weight and dimensions : 3,880 lbs. - 64"L x 31"W x 66"H

What Our Experts Think

• Heavy-Duty Punching Power: The U.S. Industrial Machinery 66 Ton Hydraulic Ironworker with Dual Operator Stations (USHI66T-DO-XT) offers a powerful 66-ton punching capacity, making it ideal for heavy-duty metalworking tasks. This capability allows operators to easily punch through thick steel, aluminum, and other metals, significantly improving productivity and precision in demanding industries.

• Dual Operator Stations for Efficiency: The dual operator stations allow two workers to operate the machine simultaneously, maximizing productivity and reducing downtime in high-volume operations. This feature is especially beneficial in production environments that require fast turnaround times and increased throughput.

• Extended 17" Punch Throat: The extended 17” punch throat provides greater flexibility and accessibility when working with larger workpieces. This allows for easier punching of longer or more complex materials without the need for repositioning, streamlining the workflow and reducing time spent on setup.

• Versatile Functionality: In addition to punching, this hydraulic ironworker can perform a range of other operations, including shearing, notching, and bending, making it a highly versatile tool for a variety of metalworking tasks. Its ability to handle multiple functions on one machine reduces the need for multiple pieces of equipment, saving both space and money.

• Robust Construction for Durability: Built with industrial-grade materials, the USHI66T-DO-XT is engineered to withstand the rigors of high-volume use. Its rugged design minimizes wear and tear, ensuring that it remains a reliable and durable machine for years of operation in demanding environments.

• Improved Operator Safety: The dual operator stations are designed with safety in mind, offering each operator their own workstation with easy access to controls and emergency shut-offs. This ensures a safer working environment, especially when both operators are working simultaneously on different tasks.

• Increased Production Efficiency: With its large punching capacity, extended punch throat, and dual operator setup, the USHI66T-DO-XT is a workhorse for high-efficiency production lines. Its speed and versatility reduce the need for multiple machines, consolidating operations and ultimately increasing production rates.

• Ease of Maintenance: U.S. Industrial Machinery has designed this ironworker with ease of maintenance in mind. The durable construction and well-engineered components reduce the frequency of breakdowns and simplify upkeep, ensuring that the machine remains in top working condition with minimal downtime.

• Long-Term Value: Although the USHI66T-DO-XT represents a significant investment, it pays off in terms of its durability, versatility, and capacity to handle large-scale metalworking projects. Over time, the reduced need for multiple machines, increased throughput, and decreased downtime provide an excellent return on investment.

Q&A

Q: What is the U.S. Industrial Machinery 66 Ton Hydraulic Ironworker with Dual Operator Stations Extended 17” punch throat - USHI66T-DO-XT?
A: The U.S. Industrial Machinery USHI66T-DO-XT is a 66-ton hydraulic ironworker designed for heavy-duty metalworking applications. It features dual operator stations and an extended 17" punch throat, making it ideal for handling large and complex metalworking tasks, such as punching, shearing, and notching.

Q: What are the key features of the USHI66T-DO-XT?
A: The USHI66T-DO-XT offers a robust 66-ton hydraulic system, dual operator stations for increased productivity, and a 17" extended punch throat for greater flexibility in handling larger workpieces. It is built to perform a variety of metalworking functions including punching, shearing, and notching, with enhanced versatility and efficiency.

Q: What types of materials can the USHI66T-DO-XT handle?
A: The USHI66T-DO-XT is designed to handle a wide range of materials, including mild steel, aluminum, stainless steel, and other metals. It is specifically built to handle tough industrial materials for punching, shearing, and notching applications.

Q: What are the dimensions and weight of the USHI66T-DO-XT?
A: For detailed specifications such as dimensions and weight, it’s recommended to refer to the product manual or contact the manufacturer directly, as they may vary depending on configuration and additional features.

Q: Is the USHI66T-DO-XT easy to operate?
A: Yes, the USHI66T-DO-XT is designed for ease of use, with user-friendly controls and dual operator stations that increase efficiency. Its advanced hydraulic system and extended punch throat make it simple to adjust and use for various tasks, even for larger workpieces.

Q: Does the USHI66T-DO-XT come with a warranty?
A: Yes, the USHI66T-DO-XT typically comes with a manufacturer warranty. For specific warranty coverage and duration, it is advisable to consult the manufacturer or an authorized distributor.

Q: Who is the USHI66T-DO-XT ideal for?
A: The USHI66T-DO-XT is perfect for industrial manufacturing, fabrication shops, and metalworking operations that require high-performance punching, shearing, and notching on large or thick materials. Its dual operator stations and extended punch throat make it highly suitable for high-volume, heavy-duty tasks.

Maintenance Tips

• Inspect Punch and Die: Regularly check punches and dies for wear or damage; replace or resharpen them as needed to maintain clean, accurate punching and cutting.
• Hydraulic System Check: Monitor hydraulic fluid levels, inspect hoses for leaks, and replace hydraulic oil as recommended to keep the system running smoothly.
• Lubricate Moving Parts: Apply grease to the ram, punch mechanisms, and all moving components to reduce friction and ensure long-lasting operation.
• Electrical System Inspection: Test all electrical components, including emergency stops, switches, and wiring, for proper operation and integrity.
• Check Fasteners: Tighten bolts, nuts, and screws regularly to ensure stability and prevent vibrations or instability during use.
• Clean Work Area: Remove scrap material and debris from the punch throat and surrounding areas after each use to maintain a clear and efficient workspace.
• Inspect Dual Operator Stations: Ensure that both operator stations are functioning correctly, with responsive controls and safety features working as expected.
• Monitor Hydraulic Pressure: Regularly check hydraulic pressure to ensure optimal punching force and adjust if necessary to maintain performance.
• Follow Manufacturer’s Maintenance Schedule: Stick to the recommended intervals for hydraulic fluid replacement, part inspection, and lubrication to maintain optimal performance and machine longevity.
