T26 EBIKE

T26 EBIKE

Performance

• Top Speed: Class 2/3, 28 Mph (45Km/h)
• Range: 30-50+miles (48-80km) in Class-2 throttle-only mode (pure electricity); 52-87+miles (84-140km) in Class-1 PAS (pedal assist)
• Motor: 48V Peak 1500W (Rated 1000W) Brushless Rear Hub Motor 80N.m
• Battery: 48V 15/20/25Ah Battery (Lithium 18650 Cells)
• Energy: 720/960/1200Wh
• Front Suspension: 26" Full Aluminum Double Shoulder Snow Suspension, 80mm Travel
• Rear Suspension: 850 Pounds, 180mm Travel
• Brakes: Double Piston Oil Brake, Equipped with 180mm Stainless Brake Disc
• Tires: CHAOYANG Off-road Tire 26" * 4.0" H5176 30TPI with AV+ Lining Belt
• Throttle: Grip Twist Throttle

Electronics

• Charger: 48V3A Charger
• Charging Time: 3.5-8.0 Hours

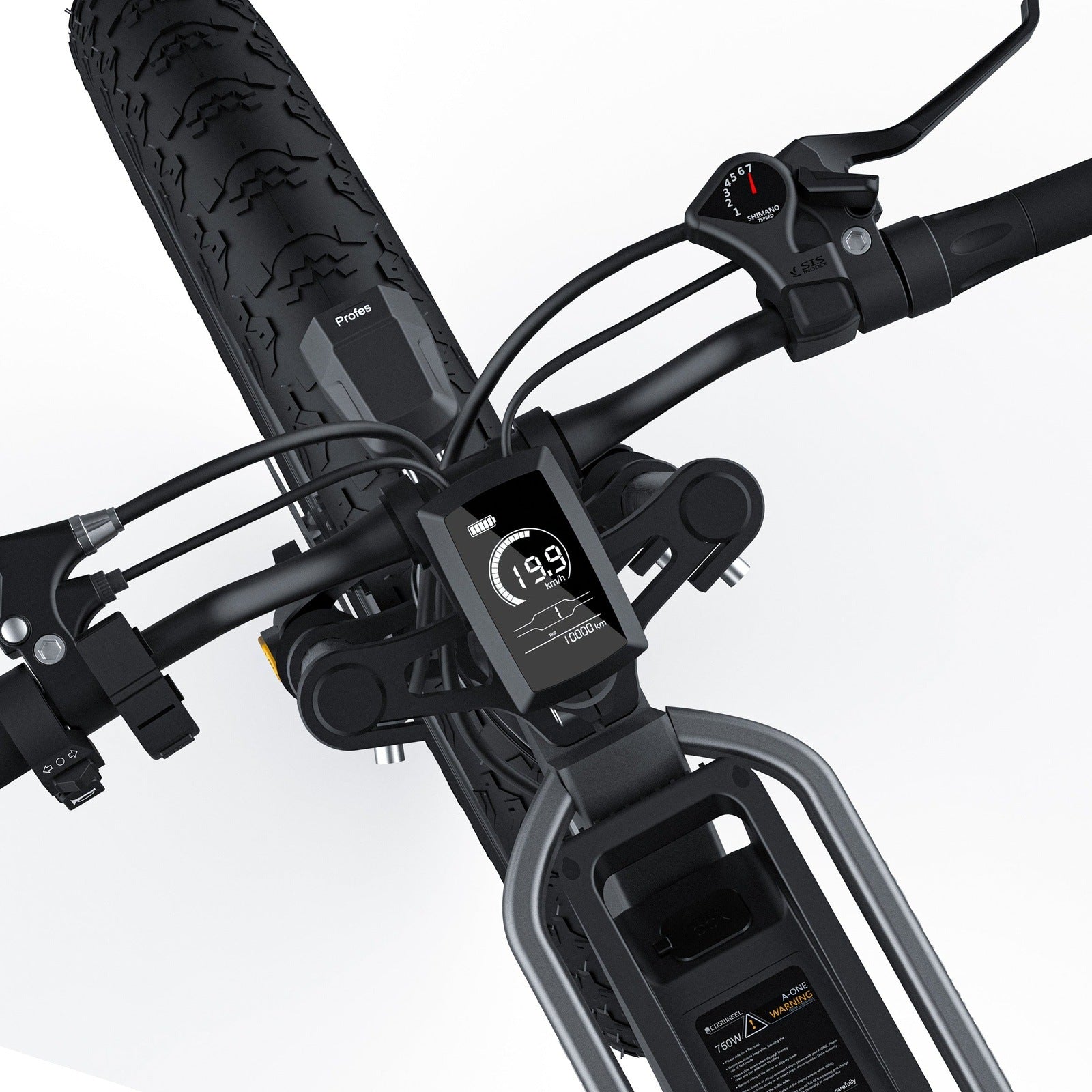

• Display: Easy Read LCD Display
• Controller: 48V 28A
• Front Light: Classic Angel Eye Headlight, 120 LUX
• Rear Light: LED
• Pedal Assist: 5 Levels
• Sensors: Speed Sensor

Components

• Frame: Hydroformed Triple-Butted 6061-T6 Aluminium Alloy
• Pedal: Aluminum Alloy Pedal, with Reflect-light, Axis 9/16 x2
• Crank: 1/2 "*3/32"*46T 7-speed ED Tooth Plate
• Rear Derailleur: Shimano 7-Speed
• Chain: 7-speed Anti-rust, 1/2" * 3/32"
• Handlebars: Bend Handlebar, φ620*31.8*H:30

Geometry

• Suitable Height: 5'3" - 6'5"
• Seat Height: 35.4" (90cm)
• Bike Height: 47.3" (120cm)
• Wheelbase: 49.2" (125cm)
• Handlebar Width: 25.6" (65cm)
• Bike Weight: ≥88lbs (with Battery) (≥40kg)
• Maximum Load: 330lbs (150kg)
• Safe Load: 265lbs (120kg)
• Overall Size: 70.9" * 25.6" *47.3" (180*65*120cm)
• Package Size: 65" * 13.4" * 35.4" (165*34*90cm)

What Our Experts Think

• Performance-Oriented Design: The T26 E-Bike is engineered for high performance, featuring a powerful motor and rugged construction ideal for commuting and off-road adventures.
• Exceptional Range: With a robust battery, the T26 delivers an extended range of up to 60 miles per charge, depending on usage and terrain.
• Comfort and Stability: Equipped with advanced suspension and fat tires, the T26 ensures a smooth and stable ride on various surfaces.
• User-Centric Features: The intuitive LCD display, multiple pedal-assist modes, and throttle options make it easy to customize your riding experience.
• Durable and Stylish: Built with a strong frame and modern aesthetics, the T26 is both tough and visually appealing.

The T26 E-Bike is a top choice for riders seeking a versatile e-bike that balances power, comfort, and durability.

Q&A

Q: What type of terrain is the T26 suitable for?
A: The T26 is ideal for a variety of terrains, including city streets, gravel paths, and light off-road trails, thanks to its rugged tires and strong motor.

Q: How fast can the T26 E-Bike go?
A: The T26 can reach speeds of up to 28 mph, making it a high-performance option for thrill-seekers and commuters alike.

Q: Does the T26 include built-in lighting?
A: Yes, the T26 features integrated front and rear lights for enhanced visibility and safety during night rides.

Maintenance Tips

• Battery Upkeep: Charge the battery after each ride, and avoid extreme temperatures to maintain performance.
• Tire Maintenance: Keep the tires properly inflated and inspect them for wear or damage before rides.
• Clean Regularly: Clean the frame, chain, and drivetrain after rides, especially if exposed to dirt or moisture.
• Check Brakes: Regularly inspect brake pads and cables to ensure reliable stopping power.
• Protect from Elements: Store the T26 in a dry, sheltered location to prevent weather-related wear.
• Schedule Servicing: Have the e-bike inspected and tuned up by a professional every six months or after heavy use.
