T20R EBIKE

T20R EBIKE

Performance

• Top Speed: Class 2/3, 28 Mph (45Km/h)
• Range: 40+miles (64km) in Class-2 throttle-only mode (pure electricity); 70+miles (113km) in Class-1 PAS (pedal assist)
• Motor: 48V Peak 1500W (Rated 1000W) Brushless Rear Hub Motor 80N.m
• Battery: 48V 20Ah Battery (Lithium 18650 Cells)
• Energy: 960Wh
• Front Suspension: 20" Shoulder Shock Absorbing, 80mm Travel
• Brakes: Disc Brake, Equipped with 160mm Stainless Brake Disc
• Tires: Chaoyang Sunny Road Tire 20"*4" IA-5189
• Throttle: Grip Twist Throttle

Electronics

• Charger: 48V3A Charger
• Charging Time: 3.5-8.0 Hours
• Display: Easy Read LCD Display
• Controller: 48V 28A

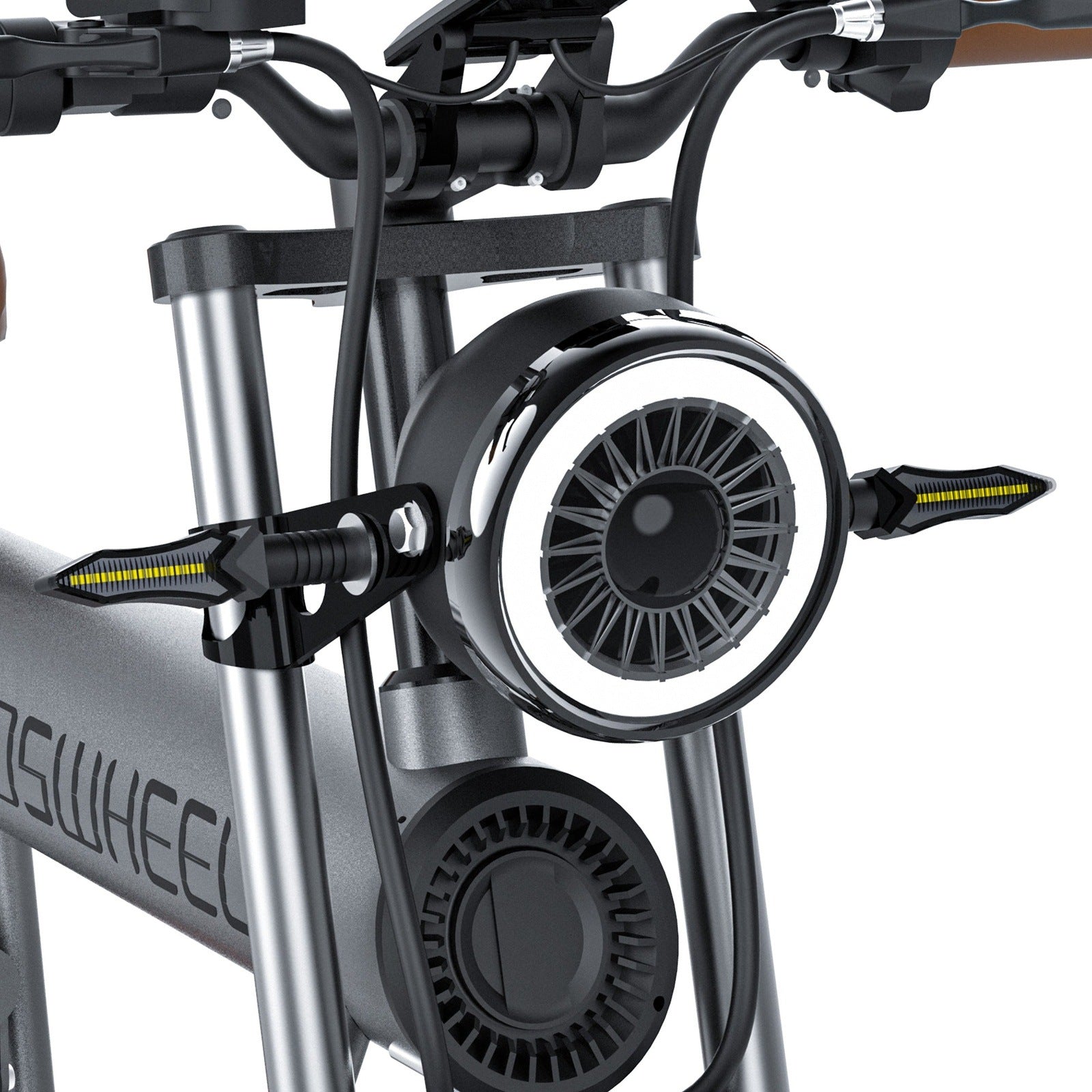

• Front Light: Classic Angel Eye Headlight, 120 LUX
• Rear Light: LED
• Pedal Assist: 5 Levels
• Sensors: Speed Sensor

Components

• Frame: Hydroformed Triple-Butted 6061-T6 Aluminium Alloy
• Pedal: Aluminum Alloy Pedal, with Reflect-light, Axis 9/16 x2
• Crank: 1/2 "*3/32"*46T 7-speed ED Tooth Plate
• Rear Derailleur: Shimano 7-Speed
• Chain: 7-speed Anti-rust, 1/2" * 3/32"
• Handlebars: Iron, Curved Handle, Matte Black 620L*Φ31.8*H: 30 High

Geometry

• Suitable Height: 5'3" - 6'8"
• Seat Height: 35.8" (91cm)
• Bike Height: 45.3" (115cm)
• Wheelbase: 43.3" (110cm)
• Handlebar Width: 25.6" (65cm)
• Bike Weight: ≥88lbs (with Battery) (≥40kg)
• Maximum Load: 330lbs (150kg)
• Safe Load: 265lbs (120kg)
• Overall Size: 70.9" * 25.6" *45.3" (180*65*115cm)
• Package Size: 54.3" * 11.8" * 30.7" (138*30*78cm)

What Our Experts Think

• Rugged All-Terrain Performance: Designed to handle diverse terrains with ease, from city streets to rough trails.
• Impressive Range: Equipped with a high-capacity battery for long-distance rides.
• Powerful Motor: Features a robust motor for efficient and smooth acceleration.
• Enhanced Safety: Comes with advanced braking systems and bright LED lights for visibility.
• Comfortable Ride: Ergonomic design with shock-absorbing features for a smooth and enjoyable experience.

Q&A

Q: What is the maximum range on a full charge?
A: The T20R can travel up to 50 miles on a single charge, depending on usage and terrain.

Q: Does it support multiple riding modes?
A: Yes, it offers pedal-assist, throttle, and manual modes for flexibility.

Q: How fast can the T20R go?
A: The bike can reach speeds of up to 28 mph.

Q: Is the battery removable?
A: Yes, the battery is detachable for easy charging and replacement.

Q: What’s the weight capacity?
A: The T20R supports up to 300 lbs, accommodating most riders and additional gear.

Maintenance Tips

1. Battery Care: Avoid overcharging and store the battery in a cool, dry place when not in use.
2. Tire Maintenance: Regularly check for proper tire pressure and inspect for wear or damage.
3. Chain Lubrication: Keep the chain lubricated to prevent rust and ensure smooth operation.
4. Brake Adjustment: Periodically inspect and adjust the brakes for optimal safety.
5. Clean Regularly: Use a soft, damp cloth to wipe down the bike, avoiding excessive water around electrical components.
