MRCOOL DIY Mini Split - 36,000 BTU 3 Zone Ductless Air Conditioner and Heat Pump with 25 ft. Install Kit, DIYM336HPW02C28

Whether You Need A New Installation, An Air Conditioner Replacement, Preventive Maintenance, Indoor Air Quality Enhancement Or Emergency Repairs, We Guarantee Excellent Service At A Fair Price.

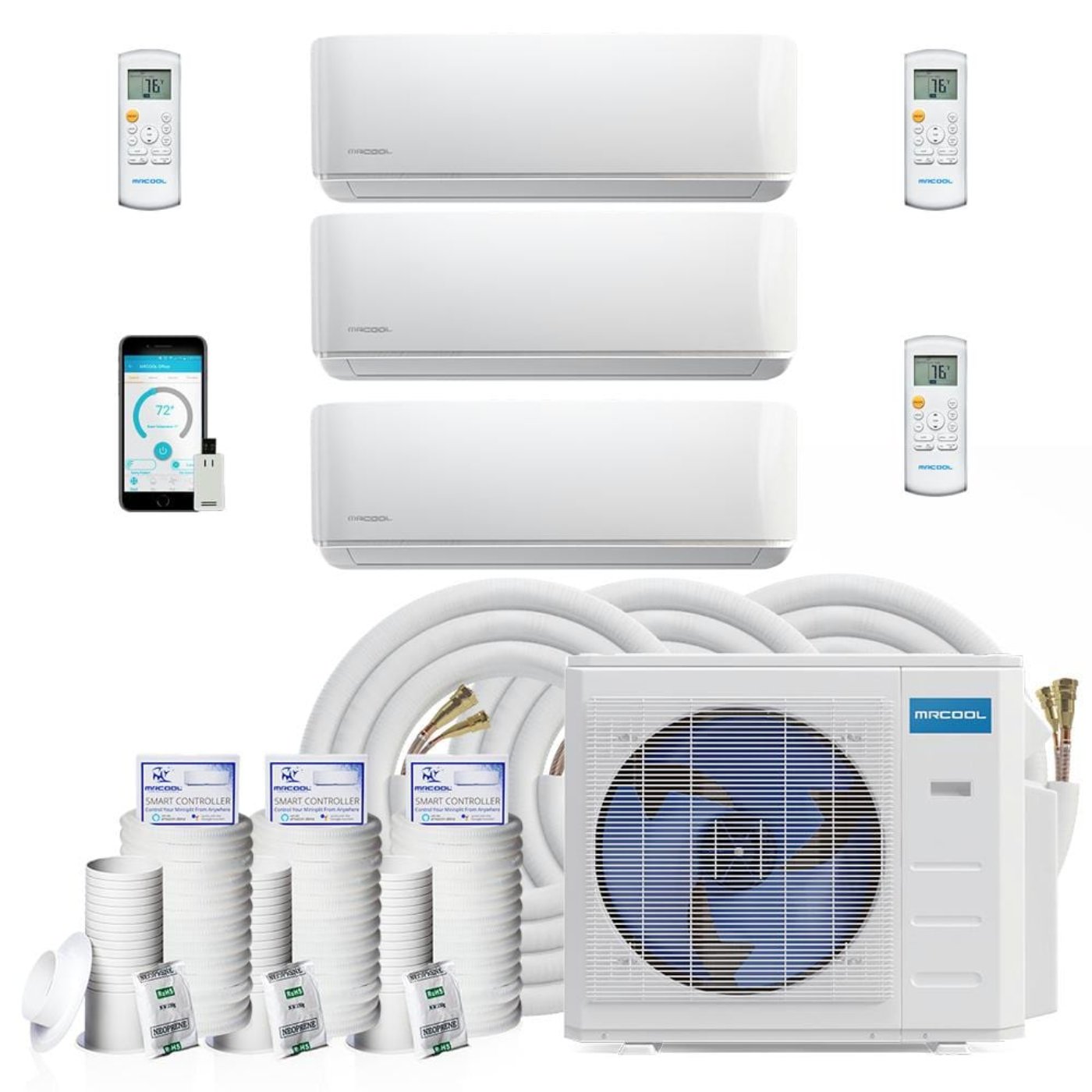

This 4th Generation MRCOOL Mini Split includes everything you need to cool and heat three different rooms. You'll be sent: DIY 36,000 BTU Multi-Zone Condenser, two 9,000 BTU Wall Mounted Air Handler, one 18,000 BTU Wall Mounted Air Handler, three Remotes, and three 25 ft. Installation Kits. The best part about all of this is that you can install it yourself! This System includes enhanced Wi-Fi engineering to make setup not only quick and easy, but the MRCOOL DIY Multi is flexible enough to be installed virtually anywhere without requiring specialized tools or expensive equipment.

See Features Below:

Condenser

• Energy Efficient. This 4 Zone condenser, when paired with select MRCOOL air handlers, is capable of producing an impressive 21.5 SEER efficiency rating.

• Works In All Environments. The ability to heat even when temperatures drop to -13°F.

• Lifetime Warranty. For added peace of mind, this is the only condenser on the market that comes with a limited lifetime compressor warranty. Simply register into the MRCOOL Care Program to get the lifetime warranty!

Air Handler, 9K BTU, Quantity 2

• Large Coverage Area. Handler covers an area up to 375 sq. ft.

• Versatile. Incredibly versatile and equipped with multiple operating modes, which include COOL, HEAT, AUTO, DRY (dehumidify), and SLEEP.

• Easy to Control. This unit also has the capability to be controlled by your Apple or Android smartphone through the use of the Smart HVAC app.

• Convenient Installation. With its light and compact design, it can be installed easily to most interior walls with the included mounting plate.

Air Handler, 18K BTU, Quantity 1

• Large Coverage Area. Handler covers an area up to 750 sq. ft.

• Versatile. Incredibly versatile and equipped with multiple operating modes, which include COOL, HEAT, AUTO, DRY (dehumidify), and SLEEP.

• Easy to Control. This unit also has the capability to be controlled by your Apple or Android smartphone through the use of the Smart HVAC app.

• Convenient Installation. With its light and compact design, it can be installed easily to most interior walls with the included mounting plate.

Line Set 25 ft., Quantity 3

• This 25 ft. copper line set connects the MRCOOL Condenser to the MR COOL Air Handlers. For Multi-Zone systems, one line set per indoor unit is required to ensure the system will function properly.

• Pre-Charged. These line sets come pre-charged with the precise amount of R-410A refrigerant.

• DIY & Save Money. This means the installation process can be performed without retaining the services of a certified technician - thus saving you money!

Additional Line Sets & Coupler

If you find the default line set lengths are not sufficient for your application, additional line sets are available for purchase. You will also need a coupler kit, which will allow two standard line sets to be connected together.

Specifications

Package Includes

• MRCOOL DIY Multi-Zone 4-Zone Condenser, 4th Gen Series, DIY-MULTI4-36HP230C

• MRCOOL DIY 4th Generation 9K BTU Wall Mount Air Handler 230 Volt with Enhanced WiFi, DIY-09-HP-WMAH-230C25 (x2)

• MRCOOL DIY 4th Generation 18K BTU Wall Mount Air Handler 230 Volt with Enhanced WiFi, DIY-18-HP-WMAH-230C25

• MRCOOL 25ft 1/4 x 1/2 Lineset for DIY 9K, 12K & 18K Indoor, DIY25-1412 (x3)

Product Manual

• Installation Manual

• Product Brochure

What Our Experts Think

• Enhanced Zone Control: The MRCOOL DIY Mini Split (36,000 BTU, 3 Zone, DIYM336HPW02C28) is an excellent choice for larger homes or multi-room spaces. With three independently controlled zones, it allows you to customize the climate in each room, ensuring personalized comfort throughout the house.
• Effortless DIY Installation: This system comes with a 25 ft. pre-charged line set, making installation hassle-free for homeowners. Its DIY-friendly design enables even those without professional HVAC experience to set it up quickly and efficiently, saving on installation costs.
• Energy-Efficient Performance: Thanks to its high SEER rating, this unit operates with energy efficiency in mind, reducing energy consumption and helping lower electricity bills. It's an eco-friendly solution that doesn't compromise on performance or comfort.
• Quiet & Discreet Operation: The MRCOOL Mini Split system is engineered to operate quietly, making it perfect for bedrooms, living rooms, or any room where peace and quiet are important. It ensures that you can enjoy a cool or warm environment without noise distractions.
• Smart Home Integration: Easily control the system through the MRCOOL app, Alexa, or Google Assistant. The integration with smart home devices provides users with the convenience of adjusting their home's temperature settings remotely or via voice commands.

Q&

Q: What is the cooling and heating capacity of the MRCOOL DIY Mini Split?
A: This unit provides 36,000 BTU, offering efficient cooling and heating for up to 3 zones.

Q: How many zones can this mini split system handle?
A: It supports 3 zones, making it perfect for multi-room or multi-area temperature control.

Q: Does this system come with an installation kit?
A: Yes, it includes a 25 ft. installation kit, simplifying the DIY installation process.

Q: Is this system both an air conditioner and a heat pump?
A: Yes, it functions as both an air conditioner for cooling and a heat pump for heating.

Q: Can I install this unit myself?
A: Yes, it's designed for DIY installation with clear, easy-to-follow instructions.

Q: Is the MRCOOL DIY Mini Split energy-efficient?
A: Yes, it is built to be energy-efficient, helping lower your energy costs while delivering effective heating and cooling.

Maintenance Tips

• Clean Filters Regularly: Clean or replace filters every 1-2 months to ensure optimal airflow and system efficiency.
• Inspect and Clean Coils: Regularly check and clean both the evaporator and condenser coils to remove dirt and debris for maximum performance.
• Monitor Refrigerant Levels: Ensure refrigerant is at the correct level to maintain effective cooling and heating.
• Keep Outdoor Unit Clear: Clear leaves, branches, and debris from the outdoor unit to ensure proper airflow and prevent overheating.
• Inspect Ductwork and Seals: Regularly inspect ducts for leaks and ensure seals are tight to enhance energy efficiency and airflow.
• Clean Drip Tray: Empty and clean the drip tray periodically to prevent mold and unpleasant odors from forming.
• Schedule Annual Professional Maintenance: Have a professional technician inspect and service the system annually to ensure it’s running smoothly and efficiently.
