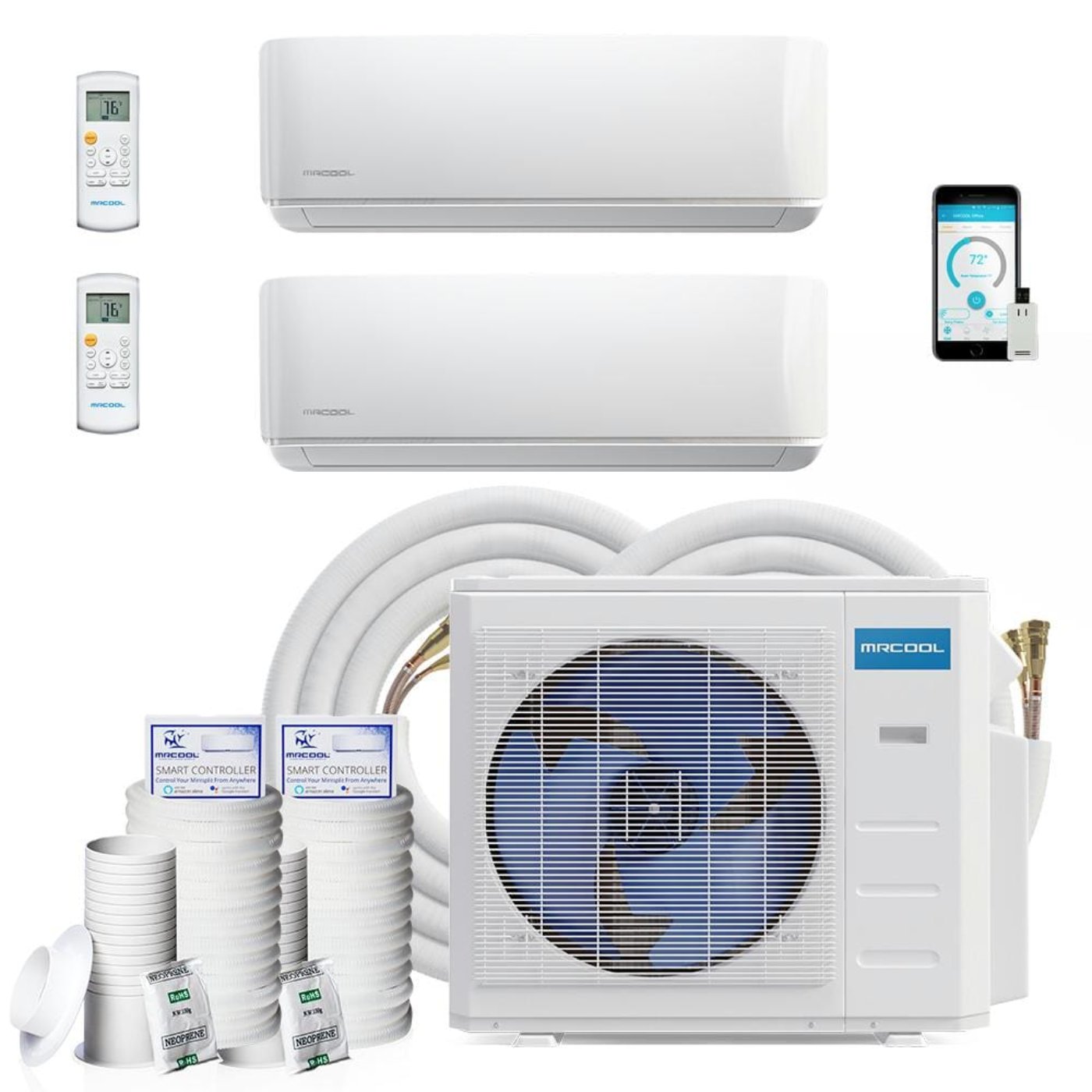

MRCOOL DIY Mini Split - 36,000 BTU 2 Zone Ductless Air Conditioner and Heat Pump with 25 ft. Install Kit, DIYM236HPW02C08

Whether You Need A New Installation, An Air Conditioner Replacement, Preventive Maintenance, Indoor Air Quality Enhancement Or Emergency Repairs, We Guarantee Excellent Service At A Fair Price.

Condenser

• Energy Efficient. This 4 Zone condenser, when paired with select MRCOOL air handlers, is capable of producing an impressive 21.5 SEER efficiency rating.

• Works In All Environments. The ability to heat even when temperatures drop to -13°F.

• Lifetime Warranty. For added peace of mind, this is the only condenser on the market that comes with a limited lifetime compressor warranty. Simply register into the MRCOOL Care Program to get the lifetime warranty!

Air Handler, 12K BTU, Quantity 1

• Large Coverage Area. Handler covers an area up to 500 sq. ft.

• Versatile. Incredibly versatile and equipped with multiple operating modes, which include COOL, HEAT, AUTO, DRY (dehumidify), and SLEEP.

• Easy to Control. This unit also has the capability to be controlled by your Apple or Android smartphone through the use of the Smart HVAC app.

• Convenient Installation. With its light and compact design, it can be installed easily to most interior walls with the included mounting plate.

Air Handler, 24K BTU, Quantity 1

• Large Coverage Area. Handler covers an area up to 1000 sq. ft.

• Versatile. Incredibly versatile and equipped with multiple operating modes, which include COOL, HEAT, AUTO, DRY (dehumidify), and SLEEP.

• Easy to Control. This unit also has the capability to be controlled by your Apple or Android smartphone through the use of the Smart HVAC app.

• Convenient Installation. With its light and compact design, it can be installed easily to most interior walls with the included mounting plate.

Line Set 25 ft., Quantity 2

• This 25 ft. copper line set connects the MRCOOL Condenser to the MR COOL Air Handlers. For Multi-Zone systems, one line set per indoor unit is required to ensure the system will function properly.

• Pre-Charged. These line sets come pre-charged with the precise amount of R-410A refrigerant.

• DIY & Save Money. This means the installation process can be performed without retaining the services of a certified technician - thus saving you money!

Specifications

Package Includes

• MRCOOL DIY Multi-Zone 4-Zone Condenser, 4th Gen Series, DIY-MULTI4-36HP230C

• MRCOOL DIY 4th Generation 12K BTU Wall Mount Air Handler 230 Volt with Enhanced WiFi, DIY-12-HP-WMAH-230C25

• MRCOOL DIY 4th Generation 24K BTU Wall Mount Air Handler 230 Volt with Enhanced WiFi, DIY-24-HP-WMAH-230C25

• MRCOOL 25ft 3/8 x 5/8 Lineset for DIY 24K & 36K Indoor, DIY25-3858

• MRCOOL 25ft 1/4 x 1/2 Lineset for DIY 9K, 12K & 18K Indoor, DIY25-1412

Product Manual

• Installation Manual


• Product Brochure

What Our Experts Think

• High Cooling & Heating Power: The MRCOOL DIY Mini Split (36,000 BTU, 2 Zone, DIYM236HPW02C08) is perfect for larger homes or spaces with two separate zones. It provides powerful cooling and heating capacity to maintain a comfortable environment even during extreme weather conditions.
• DIY-Friendly Installation: This system comes with a 25 ft. pre-charged line set, designed to simplify the installation process. Homeowners can easily install the unit themselves, avoiding the cost of hiring a professional while still enjoying reliable climate control.
• Energy-Efficient: With its high SEER rating, the MRCOOL Mini Split system helps reduce energy consumption and lower utility bills. It operates efficiently, ensuring long-term savings without compromising performance.
• Quiet Operation: This unit is designed to run quietly, making it ideal for bedrooms, living rooms, or home offices. It maintains a peaceful indoor environment while keeping temperatures consistent throughout the day and night.
• Smart Features: Enjoy the convenience of controlling the unit via the MRCOOL app, or use voice commands through Alexa or Google Assistant. The system integrates seamlessly with smart home technology, allowing for easy temperature adjustments from anywhere.

Q&

Q: What is the cooling and heating capacity of the MRCOOL DIY Mini Split?
A: It offers 36,000 BTU, providing efficient cooling and heating for up to 2 zones.

Q: How many zones does this mini split support?
A: This system supports 2 zones, perfect for managing temperature in multiple rooms or areas.

Q: Does this mini split system come with an installation kit?
A: Yes, it includes a 25 ft. installation kit, making DIY installation easier.

Q: Is the MRCOOL DIY Mini Split both an air conditioner and a heat pump?
A: Yes, it functions as both an air conditioner for cooling and a heat pump for heating.

Q: Can I install this unit myself?
A: Yes, it's designed for DIY installation with simple, step-by-step instructions.

Q: Is this mini split system energy-efficient?
A: Yes, it provides high energy efficiency, helping to reduce electricity costs while maintaining reliable performance.

Maintenance Tips

• Clean Filters Regularly: Clean or replace filters every 1-2 months to maintain airflow and prevent strain on the system.
• Inspect and Clean Coils: Check and clean the evaporator and condenser coils regularly to remove dirt and debris for optimal efficiency.
• Monitor Refrigerant Levels: Ensure the refrigerant levels are correct for optimal cooling and heating performance.
• Clear Debris from Outdoor Unit: Keep the outdoor unit free from leaves, dirt, and debris to ensure proper airflow and prevent overheating.
• Inspect Ducts and Seals: Check ducts for leaks and ensure seals are tight to improve energy efficiency and airflow.
• Clean the Drip Tray: Empty and clean the drip tray regularly to avoid mold and mildew buildup.
• Schedule Annual Professional Maintenance: Have a technician perform an annual checkup to ensure the system is running smoothly and efficiently.
