MRCOOL DIY Mini Split - 30,000 BTU 3 Zone Ductless Air Conditioner and Heat Pump with 25 ft. Install Kit, DIYM327HPW01C28

See Features Below

Condenser

• Energy Efficient. This 3 Zone condenser, when paired with select MRCOOL air handlers, is capable of producing an impressive 22 SEER efficiency rating.

• Works In All Environments. The ability to heat even when temperatures drop to -13°F.

• Lifetime Warranty. For added peace of mind, this is the only condenser on the market that comes with a limited lifetime compressor warranty. Simply register into the MRCOOL Care Program to get the lifetime warranty!

Air Handler, 9K BTU, Quantity 2

• Large Coverage Area. Handler covers an area up to 375 sq. ft.

• Versatile. Incredibly versatile and equipped with multiple operating modes, which include COOL, HEAT, AUTO, DRY (dehumidify), and SLEEP.

• Easy to Control. This unit also has the capability to be controlled by your Apple or Android smartphone through the use of the Smart HVAC app.

• Convenient Installation. With its light and compact design, it can be installed easily to most interior walls with the included mounting plate.

Air Handler, 12K BTU, Quantity 1

• Large Coverage Area. Handler covers an area up to 500 sq. ft.

• Versatile. Incredibly versatile and equipped with multiple operating modes, which include COOL, HEAT, AUTO, DRY (dehumidify), and SLEEP.

• Easy to Control. This unit also has the capability to be controlled by your Apple or Android smartphone through the use of the Smart HVAC app.

• Convenient Installation. With its light and compact design, it can be installed easily to most interior walls with the included mounting plate.

Line Set 25 ft., Quantity 3

• This 25 ft. copper line set connects the MRCOOL Condenser to the MR COOL Air Handlers. For Multi-Zone systems, one line set per indoor unit is required to ensure the system will function properly.

• Pre-Charged. These line sets come pre-charged with the precise amount of R-410A refrigerant.

• DIY & Save Money. This means the installation process can be performed without retaining the services of a certified technician - thus saving you money!

Additional Line Sets & Coupler If you find the default line set lengths are not sufficient for your application, additional line sets are available for purchase. You will also need a coupler kit, which will allow two standard line sets to be connected together.

Specifications

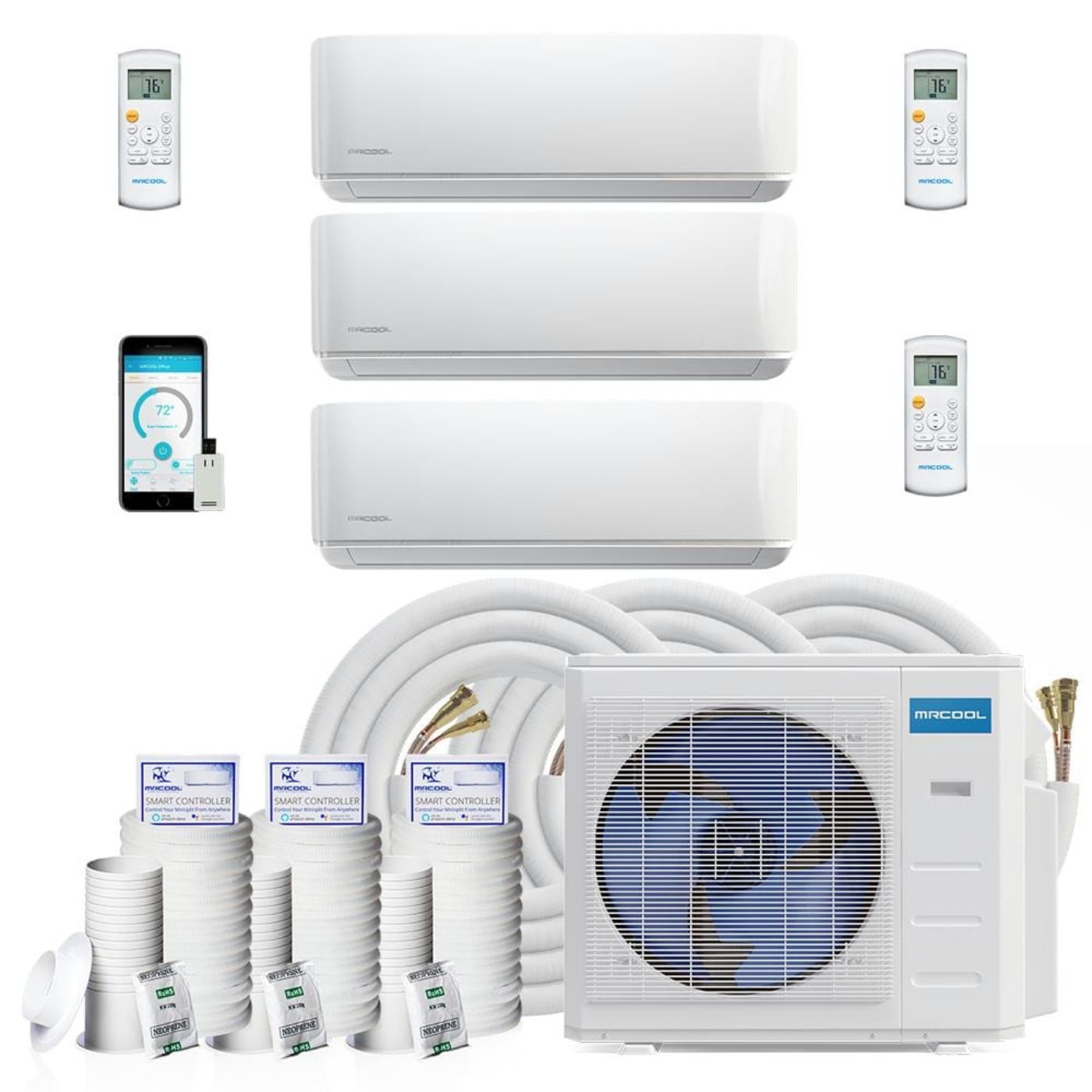

Package Includes

• MRCOOL DIY Multi-Zone 3-Zone Condenser, 4th Gen Series, DIY-MULTI3-27HP230C

• MRCOOL DIY 4th Generation 9K BTU Wall Mount Air Handler 230 Volt with Enhanced WiFi, DIY-09-HP-WMAH-230C25 (x2)

• MRCOOL DIY 4th Generation 12K BTU Wall Mount Air Handler 230 Volt with Enhanced WiFi, DIY-12-HP-WMAH-230C25

• MRCOOL 25ft 1/4 x 1/2 Lineset for DIY 9K, 12K & 18K Indoor, DIY25-1412 (x3)

If all air handlers are run simultaneously, their combined BTU output will not exceed the BTU rating of the condenser. In this case, the combined BTU output of the Air Handlers will never exceed the 27K BTU rating of the Condenser.

Product Manual

• Installation Manual

• Product Brochure

What Our Experts Think

• Versatile Three-Zone Control: The MRCOOL DIY Mini Split (30,000 BTU, 3 Zone, DIYM327HPW01C28) offers flexibility for cooling or heating three different areas independently, making it an excellent choice for multi-room homes, offices, or larger open-concept spaces.
• Effortless DIY Installation: This system is designed with ease of installation in mind, providing a 25 ft. pre-charged line set. Homeowners can enjoy a professional-quality setup without the need for costly HVAC technicians, saving time and money.
• Superior Energy Efficiency: With its high SEER rating, the system ensures efficient operation, cooling and heating your home while minimizing electricity consumption. It’s a cost-effective way to stay comfortable year-round.
• Smart Control Options: The unit is compatible with the MRCOOL app and voice control systems (Alexa and Google Assistant), offering remote access and voice-activated convenience to adjust settings without leaving your seat.
• Reliable Year-Round Comfort: Designed for consistent performance in both hot summers and cold winters, this mini-split system ensures that your home remains comfortable no matter the season.

Q&

Q: What is the MRCOOL DIY Mini Split 30,000 BTU 3-Zone System?
A: The MRCOOL DIY Mini Split is a ductless air conditioner and heat pump system that provides 30,000 BTUs of efficient heating and cooling across three separate zones. It’s ideal for homes or offices with multiple rooms that need individualized climate control.

Q: What makes this system easy to install?
A: The system is designed for DIY installation with pre-charged line sets and a 25 ft. install kit for each zone. The straightforward instructions allow you to set up the system on your own, avoiding the need for professional help.

Q: What are the benefits of the MRCOOL DIY 30,000 BTU 3-Zone Mini Split?
A:

• 30,000 BTU Capacity: Efficiently heats and cools up to three zones with powerful performance.
• DIY Installation: Pre-charged line sets and a detailed installation kit make it easy for homeowners to install themselves.
• Energy-Efficient Inverter Technology: Adjusts compressor speed based on demand, reducing energy usage and lowering electricity bills.
• Wi-Fi Control: Control the system remotely with the MRCOOL app for convenience and flexibility.
• Quiet Operation: Runs quietly, providing comfort without disturbing noise.
• Dual Functionality: Provides both heating and cooling for year-round comfort.

Q: How energy-efficient is this unit?
A: The MRCOOL DIY Mini Split features inverter technology, which adapts the compressor speed to maintain efficient operation. It is Energy Star rated, ensuring lower energy consumption and better performance compared to traditional HVAC systems.

Q: Is this system easy to maintain?
A: Yes, the MRCOOL DIY Mini Split is low-maintenance. You’ll need to clean the filters regularly and ensure the outdoor unit remains free from debris. Annual maintenance checks are recommended for optimal performance.

Q: What is the coverage area of this system?
A: This system is designed to provide optimal climate control for three zones in your home or office. Each zone is independently controlled, allowing for customized temperature settings in each area.

Maintenance Tips

• Clean Filters Regularly: Clean or replace the filters every 1-2 months to maintain proper airflow and prevent system strain.
• Inspect and Clean Coils: Check and clean both the evaporator and condenser coils to remove dirt and debris for optimal performance.
• Monitor Refrigerant Levels: Ensure refrigerant is at the correct level for effective cooling and heating.
• Clear Outdoor Unit: Remove leaves, branches, and debris around the outdoor unit to maintain airflow and prevent overheating.
• Inspect Ductwork and Seals: Check for any leaks in the ducts and make sure seals are tight to improve energy efficiency and airflow.
• Clean Drip Tray: Regularly clean and empty the drip tray to prevent mold, mildew, and unpleasant odors.
• Schedule Annual Professional Maintenance: Have a technician perform an annual inspection to ensure all components are functioning correctly and efficiently.
