MRCOOL DIY Mini Split - 30,000 BTU 3 Zone Ductless Air Conditioner and Heat Pump, DIY-B-327HP090912

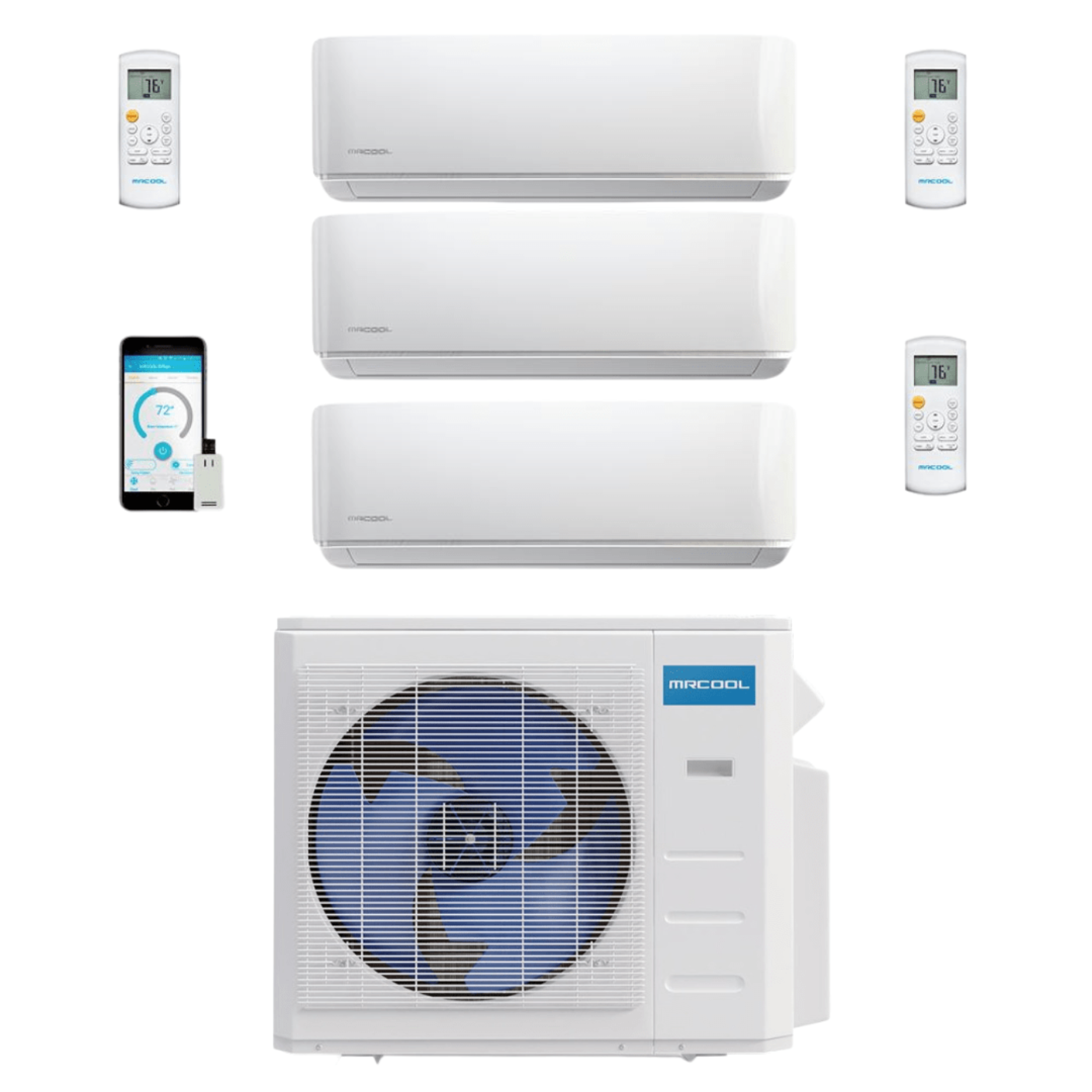

This 4th Generation MRCOOL Mini Split includes a DIY 27,000 BTU Multi-Zone Condenser, two 9,000 BTU Wall Mounted Air Handler, one 12,000 BTU Wall Mounted Air Handler, and three Remotes. The best part about all of this is that you can install it yourself!

See Features Below

Condenser

• Energy Efficient. This 3 Zone condenser, when paired with select MRCOOL air handlers, is capable of producing an impressive 22 SEER efficiency rating.

• Works In All Environments. The capability to continue to deliver heating performance when temperatures reach -13°F

• Lifetime Warranty. For added peace of mind, this is the only condenser on the market that comes with a limited lifetime compressor warranty. Simply register into the MRCOOL Care Program to get the lifetime warranty!

Air Handler, 9K BTU, Quantity 2

• Large Coverage Area. Handler covers an area up to 375 sq. ft.

• Versatile. Incredibly versatile and equipped with multiple operating modes, which include COOL, HEAT, AUTO, DRY (dehumidify), and SLEEP.

• Easy to Control. This unit also has the capability to be controlled by your Apple or Android smartphone through the use of the Smart HVAC app.

• Convenient Installation. With its light and compact design, it can be installed easily to most interior walls with the included mounting plate.

Air Handler, 12K BTU, Quantity 1

• Large Coverage Area. Handler covers an area up to 500 sq. ft.

• Versatile. Incredibly versatile and equipped with multiple operating modes, which include COOL, HEAT, AUTO, DRY (dehumidify), and SLEEP.

• Easy to Control. This unit also has the capability to be controlled by your Apple or Android smartphone through the use of the Smart HVAC app.

• Convenient Installation. With its light and compact design, it can be installed easily to most interior walls with the included mounting plate.

Specifications

Package Includes

• MRCOOL DIY Multi-Zone 3-Zone 27K BTU Condenser, 4th Gen Series, DIY-MULTI3-27HP230C

• MRCOOL DIY 4th Generation 9K BTU Wall Mount Air Handler 230 Volt with Enhanced WiFi, DIY-09-HP-WMAH-230C25 (x2)

• MRCOOL DIY 4th Generation 12K BTU Wall Mount Air Handler 230 Volt with Enhanced WiFi, DIY-12-HP-WMAH-230C25


Product Manual

• Installation Manual
• Product Brochure

What Our Experts Think

• Three-Zone Capability: The MRCOOL DIY Mini Split (30,000 BTU, 3 Zone, DIY-B-327HP090912) is designed to efficiently cool or heat multiple rooms at once. This system is perfect for homes or offices that need to manage the temperature across different spaces simultaneously, offering personalized comfort in each zone.
• DIY Installation Made Easy: The system comes with a 25 ft. pre-charged line set, allowing for straightforward installation without requiring a professional technician. This makes it a cost-effective option for homeowners looking to install the unit themselves.
• Energy-Efficient Operation: With its high SEER rating, this mini-split air conditioner and heat pump offers excellent energy efficiency, reducing overall utility costs while maintaining comfortable indoor temperatures throughout the year.
• Smart Home Integration: The unit is compatible with the MRCOOL app and can be controlled via voice commands through Alexa or Google Assistant. This allows for effortless adjustments from anywhere in the house, adding convenience and functionality to your space.
• All-Season Comfort: Whether it's the heat of summer or the chill of winter, this system provides reliable year-round climate control, making it a versatile and dependable choice for keeping your home at the perfect temperature.

Q&

Q: What is the cooling and heating capacity of the MRCOOL DIY Mini Split?
A: It has a 30,000 BTU capacity, providing efficient cooling and heating for up to 3 zones.

Q: How many zones does this mini split system support?
A: This system supports 3 separate zones, ideal for multi-room temperature control.

Q: Is professional installation required for the MRCOOL DIY Mini Split?
A: No, it's designed for DIY installation, with no need for professional help.

Q: Does this unit function as both an air conditioner and a heat pump?
A: Yes, it provides both cooling and heating, making it a versatile year-round solution.

Q: What is the energy efficiency of this mini split?
A: It is designed to offer high energy efficiency, reducing operating costs while providing reliable performance.

Q: Is this mini split suitable for residential or commercial use?
A: Ideal for residential use, it can also be used in small commercial spaces requiring multi-zone climate control.

Maintenance Tips

• Clean Filters Regularly: Wash or replace filters every 1-2 months to ensure maximum airflow and prevent system inefficiency.
• Inspect and Clean Coils: Regularly clean the evaporator and condenser coils to avoid dirt buildup, which can reduce performance.
• Check Refrigerant Levels: Keep refrigerant levels within recommended specifications to ensure proper cooling and heating.
• Clear Debris Around Outdoor Unit: Keep the outdoor unit free from leaves, branches, and other debris to maintain airflow and prevent overheating.
• Check Ductwork and Seals: Inspect for leaks in ducts and ensure seals are tight to enhance energy efficiency.
• Clean the Drip Tray: Clean and empty the drip tray periodically to prevent mold and mildew buildup.
• Schedule Annual Professional Maintenance: Arrange for a professional service check annually to ensure the system is functioning properly and efficiently.
