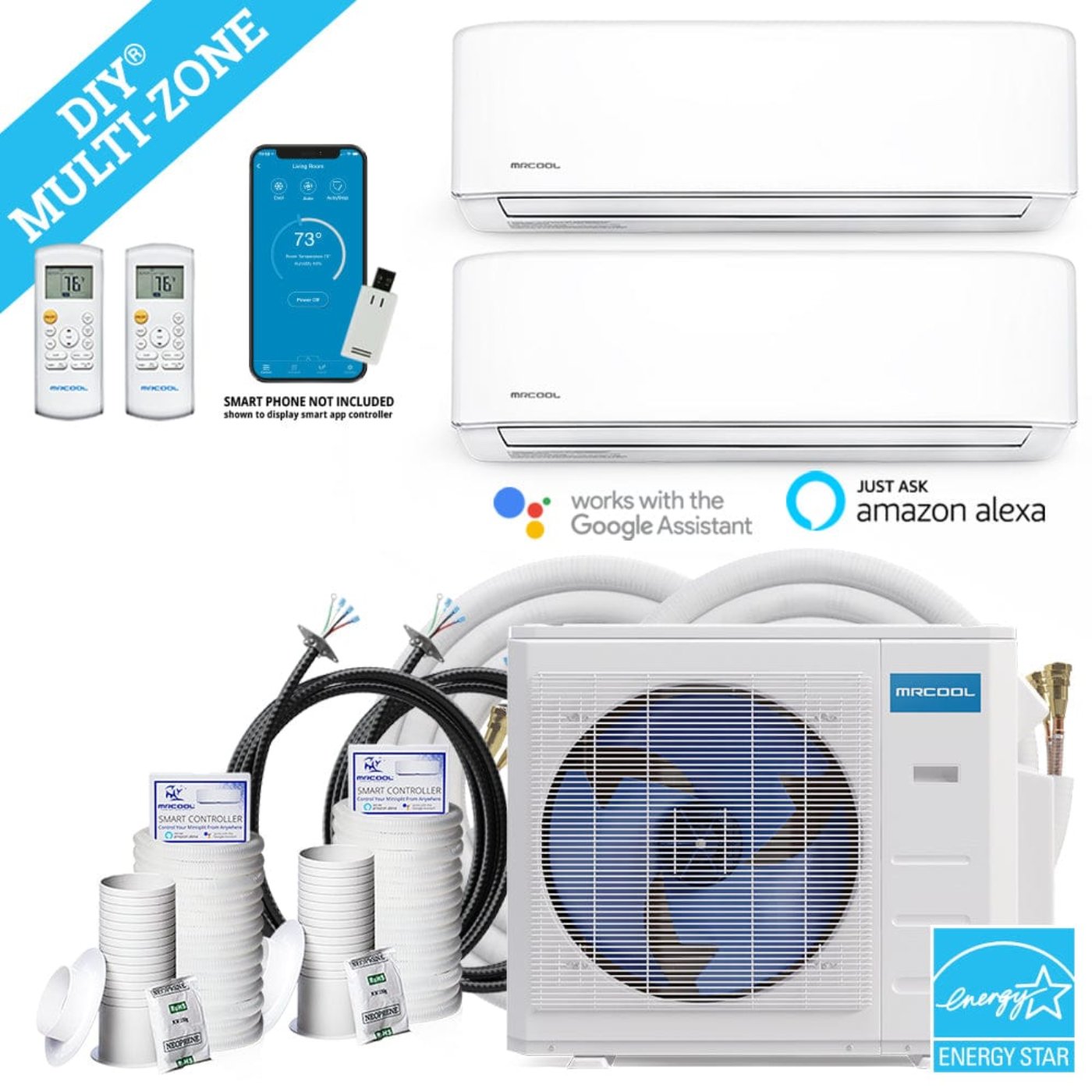

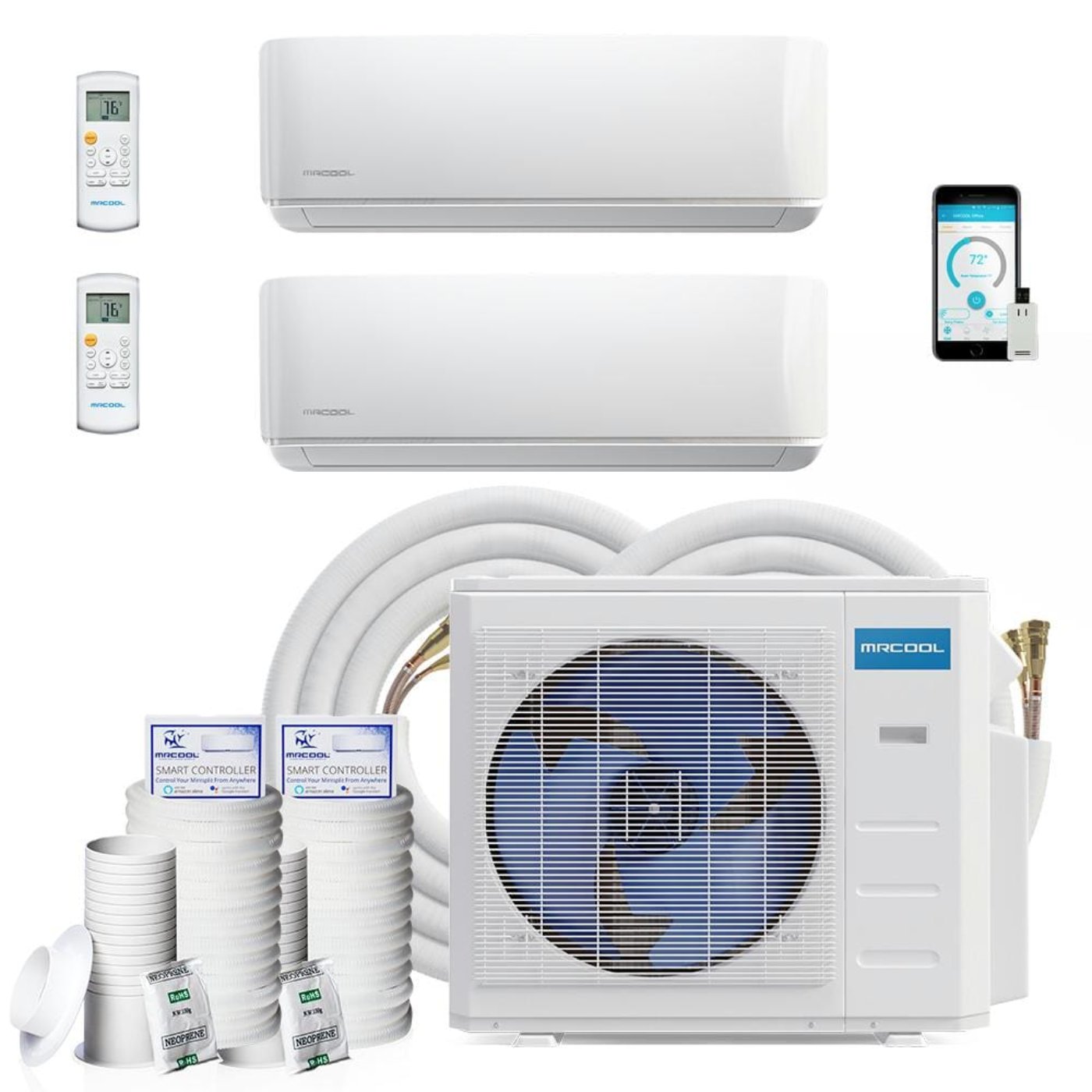

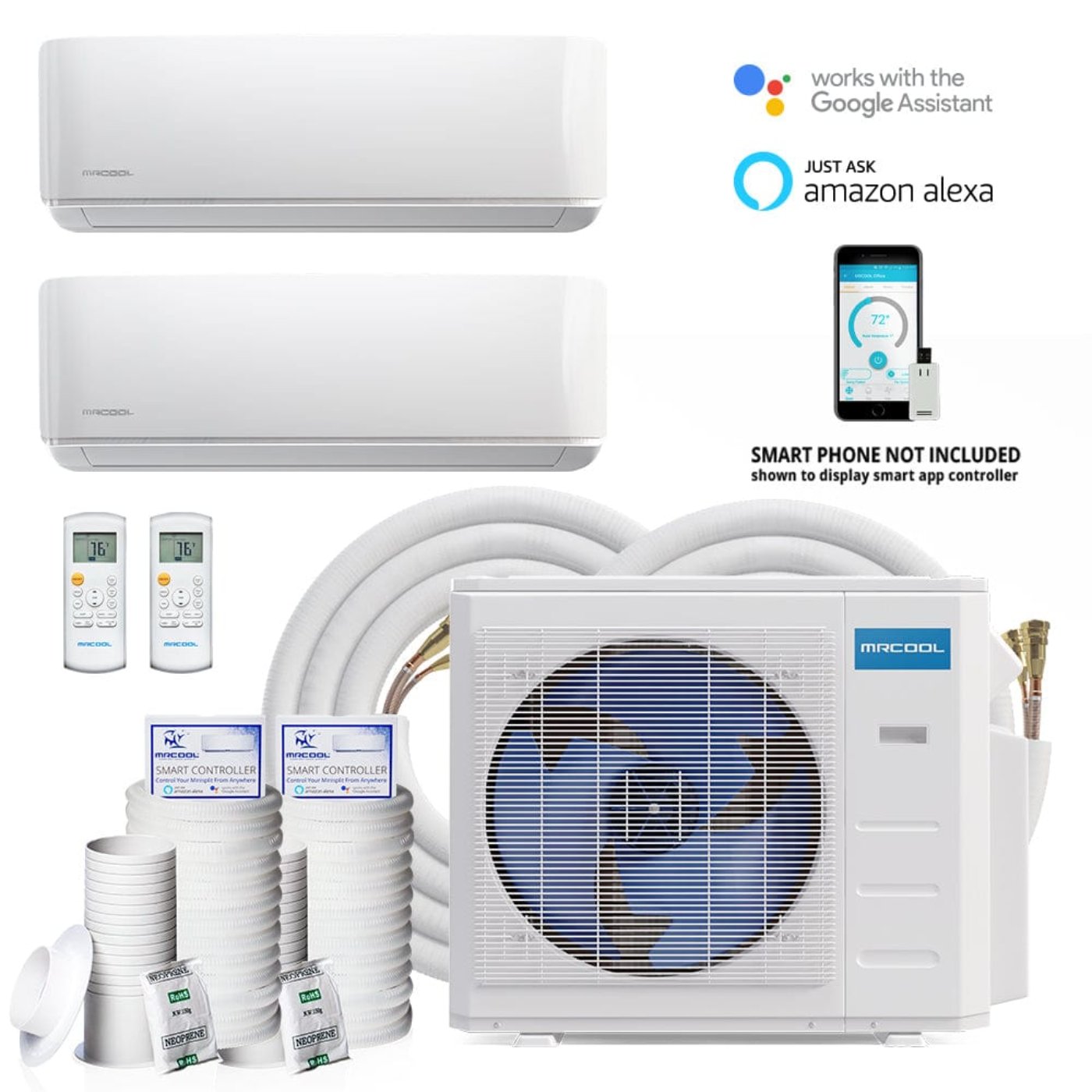

MRCOOL DIY Mini Split - 30,000 BTU 2 Zone Ductless Air Conditioner and Heat Pump with 25 ft. Install Kit, DIYM227HPW03C07

• Energy Efficient. This 3 Zone condenser, when paired with select MRCOOL air handlers, is capable of producing an impressive 22 SEER efficiency rating.

• Works In All Environments. The ability to heat even when temperatures drop to -13°F.

• Lifetime Warranty. For added peace of mind, this is the only condenser on the market that comes with a limited lifetime compressor warranty. Simply register into the MRCOOL Care Program to get the lifetime warranty!

Air Handler, 12K BTU, Quantity 1

• Large Coverage Area. Handler covers an area up to 500 sq. ft.

• Versatile. Incredibly versatile and equipped with multiple operating modes, which include COOL, HEAT, AUTO, DRY (dehumidify), and SLEEP.

• Easy to Control. This unit also has the capability to be controlled by your Apple or Android smartphone through the use of the Smart HVAC app.

• Convenient Installation. With its light and compact design, it can be installed easily to most interior walls with the included mounting plate.

Air Handler, 18K BTU, Quantity 1

• Large Coverage Area. Handler covers an area up to 750 sq. ft.

• Versatile. Incredibly versatile and equipped with multiple operating modes, which include COOL, HEAT, AUTO, DRY (dehumidify), and SLEEP.

• Easy to Control. This unit also has the capability to be controlled by your Apple or Android smartphone through the use of the Smart HVAC app.

• Convenient Installation. With its light and compact design, it can be installed easily to most interior walls with the included mounting plate.

Line Set 25 ft., Quantity 2

• This 25 ft. copper line set connects the MRCOOL Condenser to the MR COOL Air Handlers. For Multi-Zone systems, one line set per indoor unit is required to ensure the system will function properly.

• Pre-Charged. These line sets come pre-charged with the precise amount of R-410A refrigerant.

• DIY & Save Money. This means the installation process can be performed without retaining the services of a certified technician - thus saving you money!

Specifications

Package Includes

• MRCOOL DIY Multi-Zone 3-Zone Condenser, 4th Gen Series, DIY-MULTI3-27HP230C

• MRCOOL DIY 4th Generation 12K BTU Wall Mount Air Handler 230 Volt with Enhanced WiFi, DIY-12-HP-WMAH-230C25

• MRCOOL DIY 4th Generation 18K BTU Wall Mount Air Handler 230 Volt with Enhanced WiFi, DIY-18-HP-WMAH-230C25

• MRCOOL 25ft 1/4 x 1/2 Lineset for DIY 9K, 12K & 18K Indoor, DIY25-1412(x2)

Product Manual

• Installation Manual

• Product Brochure

What Our Experts Think

• Powerful Dual-Zone Comfort: The MRCOOL DIY Mini Split (30,000 BTU, 2 Zone, DIYM227HPW03C07) is perfect for cooling and heating larger spaces or multi-room setups. It offers efficient temperature control for two separate zones, ensuring personalized comfort.
• DIY-Friendly Installation: This system comes with a pre-charged 25 ft. line set, allowing for easy installation without the need for professional help. Detailed instructions make the process straightforward and cost-effective.
• Energy Efficient: With its high SEER rating, the unit delivers efficient cooling and heating while minimizing energy usage, helping you save on electricity bills while maintaining consistent comfort.
• Smart Home Integration: Control your system remotely via the MRCOOL app, or with voice commands using Alexa and Google Assistant, allowing for hands-free and convenient operation from anywhere.
• Reliable Performance Year-Round: Whether in the heat of summer or the chill of winter, the MRCOOL DIY Mini Split is designed to maintain reliable performance, keeping your space at the perfect temperature year-round.

Q&

Q: What is the MRCOOL DIY Mini Split 30,000 BTU 2-Zone System?
A: The MRCOOL DIY Mini Split is a ductless air conditioner and heat pump system that provides 30,000 BTUs of efficient cooling and heating for two zones in your home or office. It’s an ideal solution for controlling the climate in multiple rooms.

Q: What makes this system easy to install?
A: Designed for DIY installation, the system comes with pre-charged line sets and a comprehensive 25 ft. install kit for each zone. Clear instructions allow homeowners to set up the system themselves without needing professional help, saving both time and money.

Q: What are the benefits of the MRCOOL DIY 30,000 BTU Mini Split?
A:

• 30,000 BTU Capacity: Provides powerful and efficient heating and cooling for two zones.
• DIY Installation: Includes pre-charged line sets and detailed instructions, making it easy for homeowners to install without a professional.
• Energy-Efficient Inverter Technology: Adjusts compressor speed to optimize energy use and reduce electricity bills.
• Wi-Fi Control: Allows remote control through the MRCOOL app for easy management of settings from your smartphone.
• Quiet Performance: Operates quietly, ideal for bedrooms, living rooms, or home offices.
• Dual Functionality: Both cooling and heating capabilities for year-round comfort.

Q: How energy-efficient is this unit?
A: The MRCOOL DIY Mini Split uses inverter technology, which dynamically adjusts the compressor speed, making it more energy-efficient than traditional systems. It’s also Energy Star rated, providing reliable cooling and heating with lower energy consumption.

Q: Is this system easy to maintain?
A: Yes, maintenance is simple. Regular tasks include cleaning the filters to maintain airflow, inspecting the outdoor unit for debris, and scheduling annual check-ups to ensure optimal performance.

Maintenance Tips

• Clean Filters Regularly: Clean or replace the filters every 1-2 months to maintain proper airflow and system efficiency.
• Check and Clean Coils: Inspect the evaporator and condenser coils for dirt and debris, cleaning them to ensure optimal performance.
• Monitor Refrigerant Levels: Ensure refrigerant is at the recommended levels for efficient cooling and heating.
• Clear Outdoor Unit: Keep the outdoor unit free from leaves, branches, and debris to maintain proper airflow and prevent overheating.
• Inspect Ducts and Seals: Check the ductwork for leaks and ensure seals are tight to improve energy efficiency and maintain good airflow.
• Clean Drip Tray: Regularly clean and empty the drip tray to prevent mold growth and foul odors.
• Annual Professional Inspection: Schedule an annual maintenance check with a technician to ensure the system runs smoothly and efficiently.
