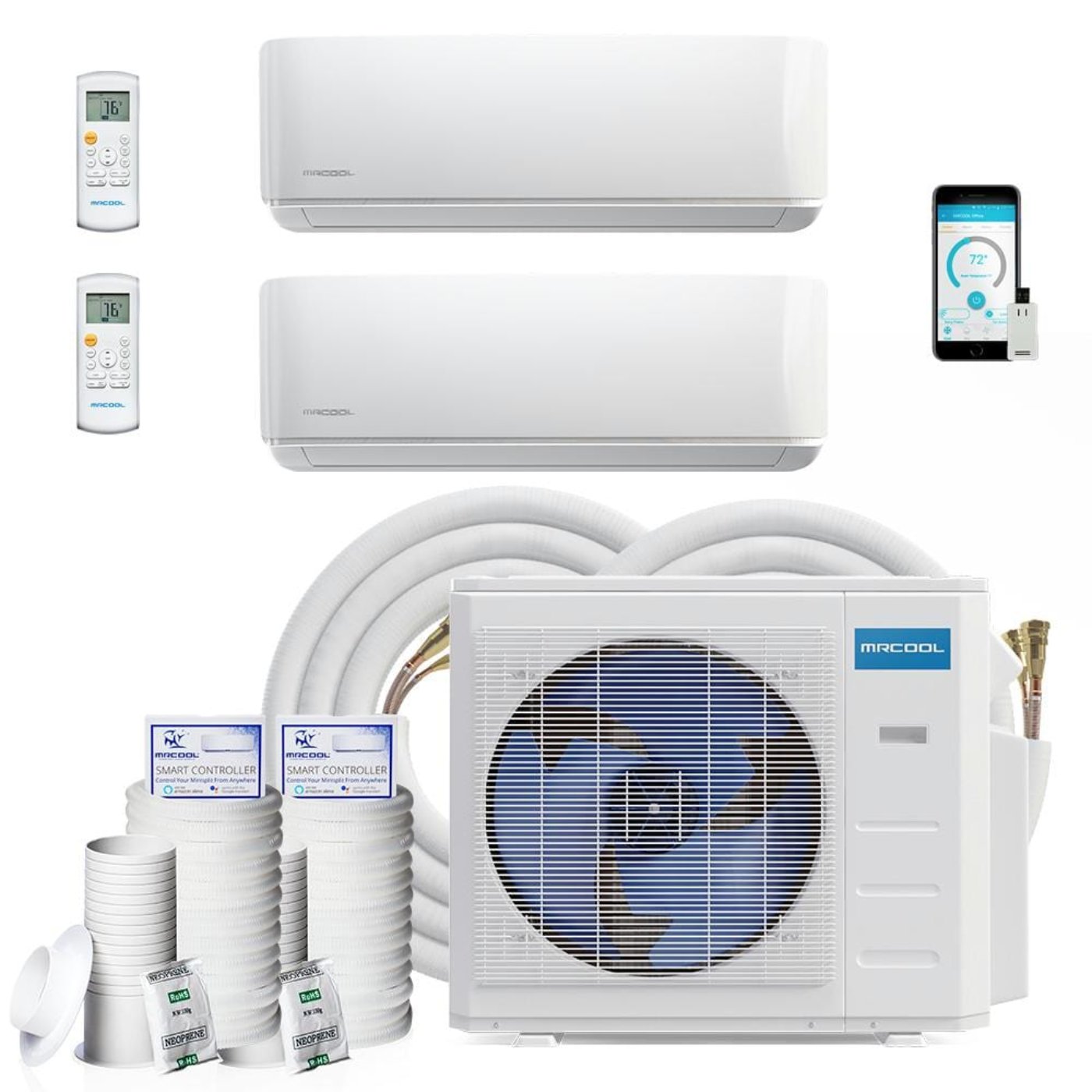

MRCOOL DIY Mini Split - 27,000 BTU 2 Zone Ductless Air Conditioner and Heat Pump with 25 ft. Install Kit, DIYM227HPW01C07

See Features below

Condenser

• Energy Efficient. This 3 Zone condenser, when paired with select MRCOOL air handlers, is capable of producing an impressive 22 SEER efficiency rating.

• Works In All Environments. The ability to heat even when temperatures drop to -13°F.

• Lifetime Warranty. For added peace of mind, this is the only condenser on the market that comes with a limited lifetime compressor warranty. Simply register into the MRCOOL Care Program to get the lifetime warranty!

Air Handler, 9K BTU, Quantity 1

• Large Coverage Area. Handler covers an area up to 375 sq. ft.

• Versatile. Incredibly versatile and equipped with multiple operating modes, which include COOL, HEAT, AUTO, DRY (dehumidify), and SLEEP.

• Easy to Control. This unit also has the capability to be controlled by your Apple or Android smartphone through the use of the Smart HVAC app.

• Convenient Installation. With its light and compact design, it can be installed easily to most interior walls with the included mounting plate.

Air Handler, 18K BTU, Quantity 1

• Large Coverage Area. Handler covers an area up to 750 sq. ft.

• Versatile. Incredibly versatile and equipped with multiple operating modes, which include COOL, HEAT, AUTO, DRY (dehumidify), and SLEEP.

• Easy to Control. This unit also has the capability to be controlled by your Apple or Android smartphone through the use of the Smart HVAC app.

• Convenient Installation. With its light and compact design, it can be installed easily to most interior walls with the included mounting plate.

Line Set 25 ft., Quantity 2

• This 25 ft. copper line set connects the MRCOOL Condenser to the MR COOL Air Handlers. For Multi-Zone systems, one line set per indoor unit is required to ensure the system will function properly.

• Pre-Charged. These line sets come pre-charged with the precise amount of R-410A refrigerant.

• DIY & Save Money. This means the installation process can be performed without retaining the services of a certified technician - thus saving you money!

Specifications

Package Includes

• MRCOOL DIY Multi-Zone 3-Zone Condenser, 4th Gen Series, DIY-MULTI3-27HP230C

• MRCOOL DIY 4th Generation 9K BTU Wall Mount Air Handler 230 Volt with Enhanced WiFi, DIY-09-HP-WMAH-230C25

• MRCOOL DIY 4th Generation 18K BTU Wall Mount Air Handler 230 Volt with Enhanced WiFi, DIY-18-HP-WMAH-230C25

• MRCOOL 25ft 1/4 x 1/2 Lineset for DIY 9K, 12K & 18K Indoor, DIY25-1412 (x2)

Product Manual

• Installation Manual

• Product Brochure

What Our Experts Think

• Enhanced Coverage and Power: The MRCOOL DIY Mini Split (27,000 BTU, 2 Zone, DIYM227HPW01C07) provides superior cooling and heating power for larger spaces, effectively managing two zones or rooms with increased energy efficiency and optimal temperature control.
• Easy DIY Installation: With a pre-charged 25 ft. line set, installation is streamlined, reducing the need for professional help and offering a hassle-free setup, perfect for DIY enthusiasts.
• Efficient and Green: Featuring a high SEER rating, this system ensures energy-efficient performance, lowering electricity bills while maintaining consistent comfort. It's an environmentally friendly choice for long-term use.
• Smart Control Features: The unit is Wi-Fi enabled, providing remote control access via the MRCOOL app and voice command functionality with Alexa and Google Assistant, allowing for intuitive temperature management.
• All-Season Comfort: Whether it’s keeping your space cool during the summer or warm through the winter, the MRCOOL DIY Mini Split ensures year-round comfort, even in varying climate conditions.

Q&

Q: What is the MRCOOL DIY Mini Split 27,000 BTU 2-Zone System?
A: This ductless air conditioner and heat pump provides efficient heating and cooling for two zones, ideal for larger spaces or multiple rooms. It offers easy installation, energy savings, and customizable comfort.

Q: What are the main features of this system?
A: Key features include:

• 27,000 BTU Capacity: Provides ample cooling and heating for two zones, suitable for larger rooms or spaces.
• DIY Installation: Comes with a 25 ft. pre-charged line set, enabling easy installation without professional help.
• Smart Technology: Wi-Fi control via a smartphone app for convenient operation.
• Energy Efficient: Inverter technology ensures minimal energy consumption and lower utility bills.
• Dual Functionality: Serves as both an air conditioner and a heat pump, providing year-round comfort.

Q: Is professional installation required?
A: No, this system is designed for DIY installation. It comes with a pre-charged line set and detailed instructions, making it easy for homeowners to install.

Q: How should I maintain the system?
A: Regular maintenance tips include:

• Cleaning the air filters monthly to maintain airflow.
• Ensuring the outdoor unit remains free from debris.
• Scheduling an annual check-up to ensure optimal performance.

Q: How energy-efficient is this system?
A: The MRCOOL DIY Mini Split uses inverter technology to adjust its speed based on demand, improving energy efficiency. It also uses the eco-friendly R-410A refrigerant

Maintenance Tips

• Clean Filters Regularly: Clean the filters every 1-2 months to keep airflow optimal and ensure efficient cooling and heating.
• Check and Clean Coils: Inspect and clean the evaporator and condenser coils from dirt and debris to maintain efficiency.
• Monitor Refrigerant Levels: Ensure the refrigerant levels are properly maintained for peak performance.
• Clear Outdoor Unit: Keep the outdoor unit clear of leaves, branches, and debris for proper ventilation and airflow.
• Inspect Ducts and Seals: Ensure all ducts are sealed correctly and check for leaks to maximize energy efficiency.
• Drain Tray Maintenance: Empty and clean the drip tray regularly to prevent mold buildup and unpleasant odors.
• Schedule Professional Maintenance: Have a technician perform an annual checkup to ensure the system runs smoothly and efficiently.
