MRCOOL 30K BTU 18.5 SEER Ducted Air Handler and Condenser with 25 ft. Pre-Charged Line Set, CENTRAL-30-HP-230-25

Whether You Need A New Installation, An Air Conditioner Replacement, Preventive Maintenance, Indoor Air Quality Enhancement Or Emergency Repairs, We Guarantee Excellent Service At A Fair Price.

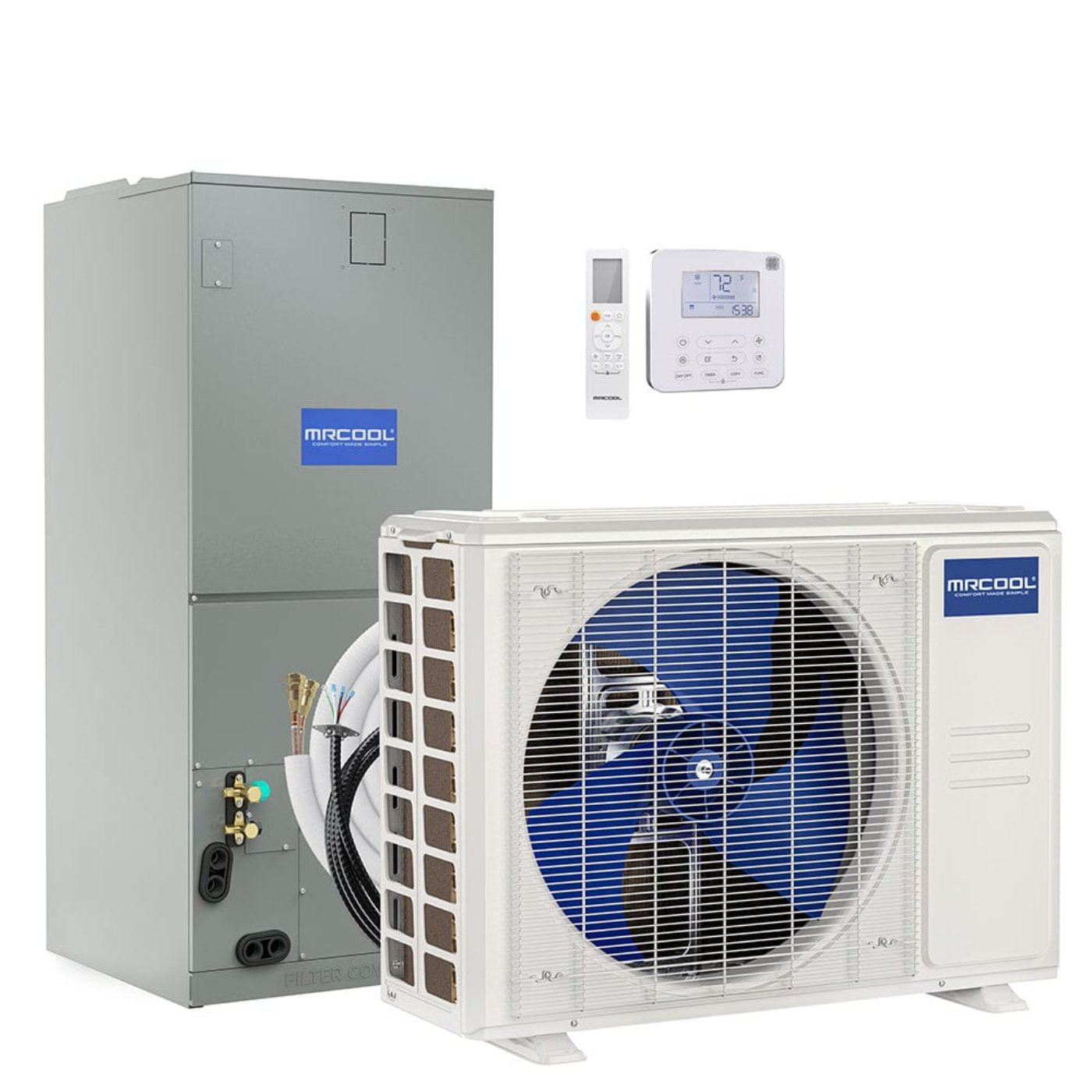

If you’ve been having to choose between comfort and savings because of an old HVAC system, why not enjoy both with the MRCOOL 30k BTU up to 18.5 SEER Central Ducted DC Inverter Heat Pump System? You’ll be able to enjoy the temperatures you want throughout 1,250 square feet. This efficient and affordable comfort solution could save money and time, because it comes with a 25 foot MRCOOL pre-charged line set, which can be easily plugged into the fittings of the air handler and the condenser. This system can be installed virtually anywhere. This multi-position air handler is able to be installed in an upflow, downflow, horizontal left or horizontal right airflow configuration.

Enjoy your comfort completely guilt-free, because the variable speed condenser can help you save money as it runs. Identify error codes on the handler’s panel or on the thermostat to maintain your system. The use of filters also ensures clean, crisp air throughout your home. Enjoy total peace of mind thanks to a 10 year parts warranty, as well as a 10 year service warranty, so you don’t have to shell out lots of money in a panic in the unlikely event that something goes wrong. Choose comfort by choosing the MRCOOL 30k BTU 18.5 SEER Central Ducted DC Inverter Heat Pump System.

Key Features

• High Static. The Central Ducted Air Handler is made to accommodate high static requirements for manufactured and modular homes.

• Multi-Positional. The unit is compatible with upflow, counterflow, downflow and horizontal configurations.

• Thermostat and Remote Included. Wired thermostat (.78 in x 4.72 in x 4.72in) has a variety of options to keep your home the temperature you want!

• Follow Me Function. The Central Ducted Unit will track the air temperature around you using the remote to ensure you receive maximum comfort.

• 10 year parts and labor warranty. This system comes with a Standard 10-year parts and labor warranty and 10-year compressor warranty.

• Optional heating kit available

• R-410A environmentally friendly refrigerant

Specifications

Product Manual

• Installation Manual

• Product Brochure

• Remote Manual

• Warranty Doc

• Accessory Manual

What Our Experts Think

• Powerful Performance: The 30,000 BTU output is perfect for larger spaces, delivering efficient cooling and consistent temperature control.
• High Efficiency: With an 18.5 SEER rating, this system offers substantial energy savings without sacrificing comfort.
• Pre-Charged Line Set: Includes a 25 ft. pre-charged line set for a quicker, more straightforward installation process.
• Ducted System: Seamlessly integrates with your existing ductwork, providing smooth, unobtrusive airflow throughout your home.
• Durable and Reliable: Built with robust components for long-lasting performance in a variety of climates and conditions.
• Quiet Operation: Designed for minimal noise, ensuring a comfortable and peaceful living environment.

Q&

Q: What is the MRCOOL 30K BTU 18.5 SEER Ducted Air Handler and Condenser system?
A: This system combines a 30,000 BTU air handler and condenser, offering high-efficiency cooling and heating with a 25 ft. pre-charged line set for easy installation.

Q: What are the key features of this system?
A: It includes a 30K BTU air handler and condenser, an 18.5 SEER rating for energy efficiency, and a 25 ft. pre-charged line set for simple, hassle-free installation.

Q: How energy-efficient is this system?
A: With an 18.5 SEER rating, it provides excellent energy efficiency, helping reduce cooling and heating costs while ensuring optimal performance.

Q: What is the cooling capacity of the system?
A: The system is designed to deliver 30,000 BTU of cooling, making it ideal for large residential or light commercial spaces.

Q: Is installation easy?
A: Yes, the 25 ft. pre-charged line set simplifies installation by eliminating the need for additional refrigerant, ensuring a quicker setup process

Maintenance Tips

• Air Filter Maintenance: Replace or clean air filters every 1-3 months to maintain airflow, improve air quality, and prevent system strain.
• Clean Coils: Inspect and clean both the evaporator coil (air handler) and condenser coil (heat pump) annually to ensure efficient heat exchange and prevent dirt buildup.
• Check Line Set: Inspect the 25 ft. pre-charged line set for any leaks, damage, or improper connections to ensure efficient refrigerant flow and prevent performance issues.
• Clear Condensate Drain: Regularly check and clear the condensate drain to prevent blockages that could lead to water damage.
• Outdoor Unit Care: Keep the condenser unit free from debris like leaves, grass, and dirt. Ensure at least 2 feet of clearance around the unit for optimal airflow.
• Electrical Inspection: Examine electrical connections, wiring, and components for signs of wear or loose connections, and repair as needed.
• Ductwork Inspection: Ensure ducts are properly sealed and insulated to prevent energy loss and enhance system efficiency.
• Test System Operation: Run the system periodically, especially during off-seasons, to ensure all components are functioning correctly.
• Annual Professional Service: Schedule a professional technician for annual maintenance to keep the system running efficiently, safely, and reliably.
