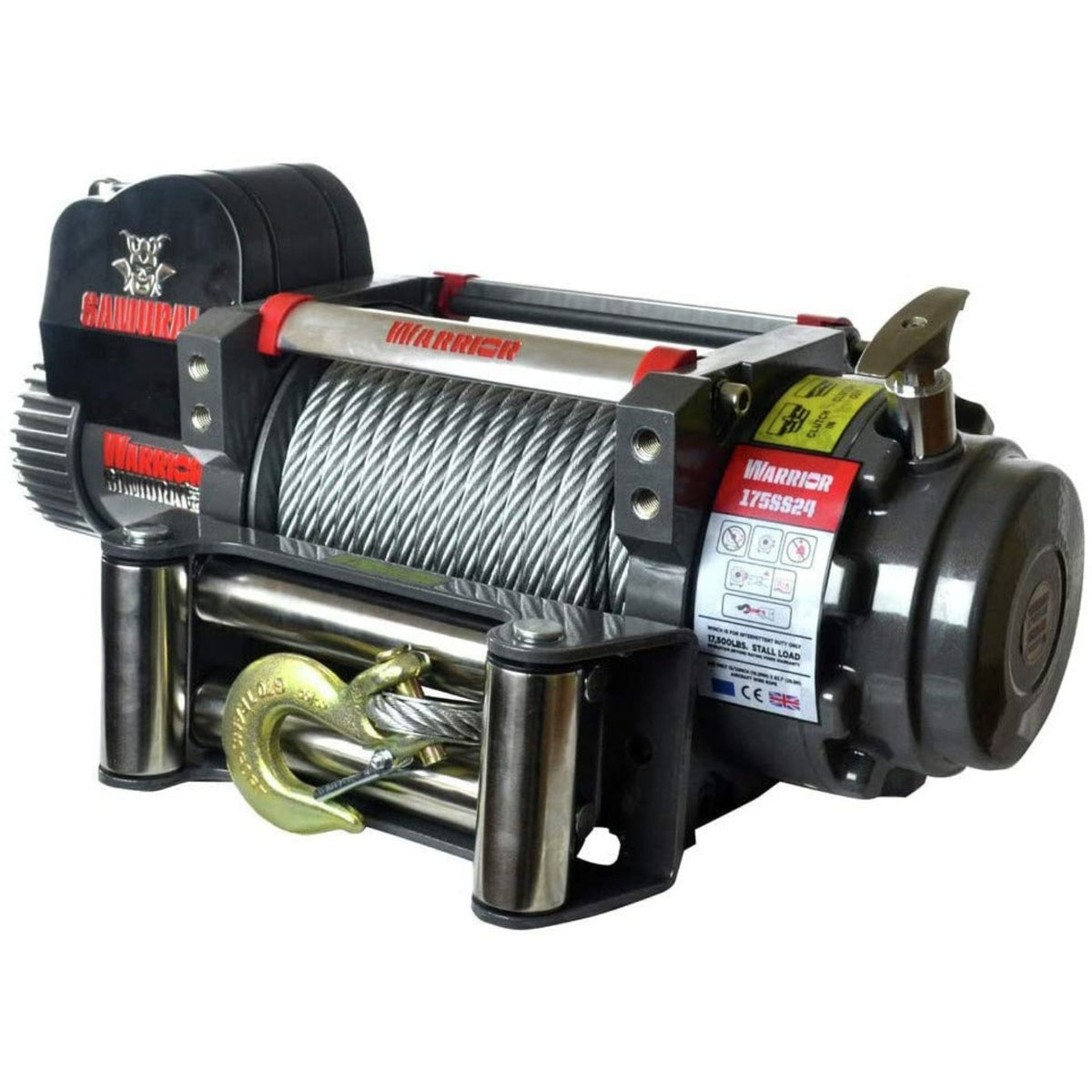

DK2 17,500LB SAMURAI SERIES WINCH
SUPERB HIGH SPECIFICATION WINCHES IDEAL FOR RECOVERY AND 4X4 APPLICATIONS
Ideal for recovery and 4x4 applications when you need a Warrior on your side. Outstanding features include high quality series wound double sealed motor with brass fittings, heavy duty waterproof contactors, double sealed drum on maintenance free bearings, quiet, efficient full steel planetary gearing.
Features
-
All brass (no corrosion) series wound motor
-
Double sealed motor
-
Sealed waterproof contactor
-
Steel contactor cover for added protection
-
Double sealed drum (gearbox/motor)
-
Sealed 3 stage planetary gears
-
Stainless steel 4 way fairleads
-
Integrated wireless remote (12V only)
PLEASE NOTE: THIS WINCH CAN ONLY BE FRONT MOUNTED USING THE APPROPRIATE IST200 MOUNTING PLATE.
Specification
| ITEM NUMBER | S17500 |
|---|---|
| RATED LINE PULL | 17500 LBS (7938 KG) |
| MOTOR | 12V: 7 HP / 4.9 KW |
| GEARING | 430:1 |
| BRAKING ACTION | AUTO IN THE DRUM |
| DRUM SIZE - DIAMETER x LENGTH | 89 x 219mm (3.5 x 8.78') |
| CABLE - DIAMETER x LENGTH | 12mm x 26m (0.47' x 85.3') |
| DIMENSIONS | 610 x 216 x 254mm (24.01 x 8.5 x 10') |
| MOUNTING PATTERN | 254 x 114mm (10 x 4.49') |
| WEIGHT | 67 KG (147.7 LBS) |
| CERTIFICATION | CE CERTIFIED |
| LAYER OF ROPE / CABLE | LINE PULL: LBS (KGS) |
|---|---|
| 1 | 17500 (7938) |
| 2 | 14000 (6364) |
| 3 | 12500 (5682) |
| 4 | 10000 (4545) |
| 5 | 6000 (2728) |
| LINE PULL: LBS (KGS) | LINE SPEED 12V FT/MIN (M/MIN) | AMP DRAW 12V • 24V |
|---|---|---|
| 0 | 22.3 (6.8) | 100 • 60 |
| 6000 (2728) | 9.84 (3.0) | 220 • 130 |
| 10000 (4545) | 9.8 (2.0) | 320 • 170 |
| 12500 (5682) | 5.8 (1.7) | 350 • 220 |
| 17500 (7938) | 3.9 (1.2) | 450 • 290 |
Manual
What Our Experts Think
- Impressive Power: The DK2 17,500 LB Samurai Series Winch is built for heavy-duty recovery, handling large loads with ease.
- Robust Construction: Features high-strength materials and a corrosion-resistant finish for long-lasting durability, even in extreme conditions.
- Efficient Performance: Powered by a reliable electric motor, providing consistent and powerful pulling force for off-road or industrial applications.
- Heavy-Duty Cable: Comes with a strong, durable steel cable that can handle tough recovery tasks.
- User-Friendly: Simple controls and straightforward installation make it easy to operate for both professionals and enthusiasts.
- Versatile: Ideal for off-roading, construction, and industrial use, offering versatility across various tough environments.
Q&A
Q: What is the DK2 17,500LB Samurai Series Winch?
A: The DK2 17,500LB Samurai Series Winch is a powerful, heavy-duty winch designed for large off-road vehicles, offering 17,500 lbs of pulling capacity for tough recovery and towing tasks.
Q: What makes the Samurai Series Winch special?
A: The Samurai Series features a rugged design, advanced technology, and high pulling power, making it ideal for extreme off-road recovery and other demanding applications.
Q: How much weight can the DK2 Samurai Series Winch pull?
A: The winch has a 17,500 lb capacity, capable of handling large vehicles and heavy-duty recovery situations.
Q: Is the DK2 Samurai Series Winch suitable for off-road use?
A: Yes, it is specifically designed for off-road vehicles, providing reliable performance in challenging terrain and adverse weather conditions.
Q: Is the DK2 Samurai Series Winch durable?
A: Yes, the Samurai Series Winch is built with high-quality materials for superior durability, ensuring it can withstand harsh environments and extended use.
Maintenance Tips
-
Clean After Use: Remove dirt, debris, and moisture to prevent buildup and rust on the winch components.
-
Inspect Cable: Regularly check the winch cable for signs of wear, fraying, or damage. Replace as needed to ensure safe operation.
-
Lubricate Moving Parts: Apply lubricant to the winch’s gears, drum, and other moving components to maintain smooth performance.
-
Check Electrical Connections: Inspect wiring, battery connections, and the solenoid for any corrosion or loose connections. Clean and tighten as necessary.
-
Inspect Mounting: Ensure the winch is securely mounted, with all hardware tightened to prevent instability.
-
Test Functionality: Periodically test the winch to ensure it operates smoothly and responds promptly to controls.
