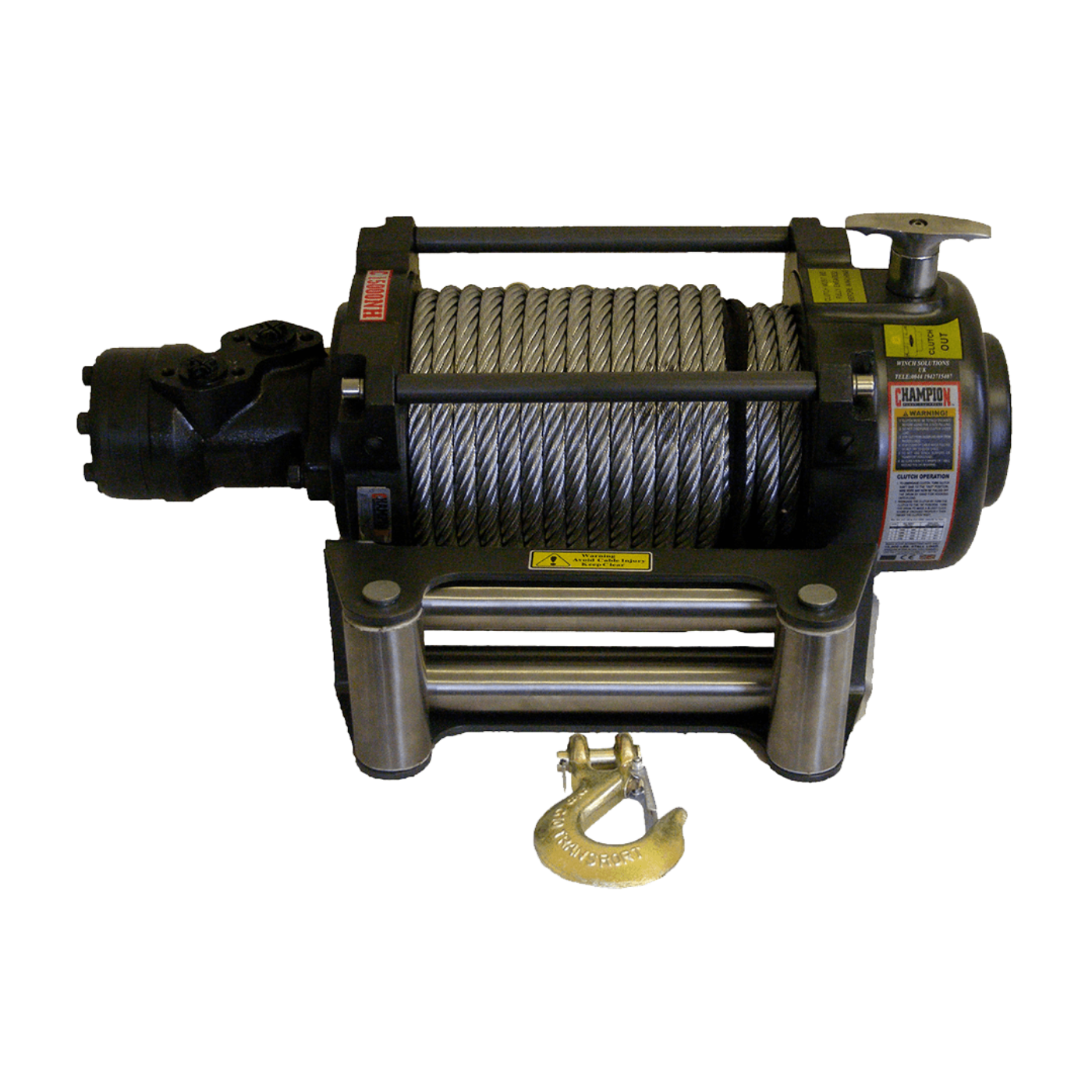

DK2 15,000 NH HYDRAULIC WINCH
COMPACT & TOUGH. WARRIOR HYDRAULIC WINCHES FOR INDUSTRIAL AND COMMERCIAL APPLICATIONS. VALUE WITHOUT COMPROMISE.
Compact, tough. A hydraulic winch for industrial and commercial applications. The unique
patented steel gearing system combined with a highly efficient and powerful hydraulic motor ensures
maximum performance over the full load range. Complete with internal brake to ensure maximum control
and load holding and backed by Warrior’s un-rivalled Limited Lifetime Warranty. Stainless steel roller fairleads and fittings are standard.
Features
-
Patented heavy duty gearing
-
Integral, automatic failsafe brake
-
Spring engaged manual freespool
-
Stainless steel fairlead and fittings
-
Rugged and compact for long life
Specification
| ITEM NUMBER | 15000NH |
|---|---|
| RATED LINE PULL | 15000 LBS (6804 KG) |
| MOTOR | HYDRAULIC DIS 80 ML/R |
| GEARING | 33.4:1 |
| DRUM SIZE - DIAMETER x LENGTH | 89 x 217mm (3.5 x 8.54') |
| CABLE - DIAMETER x LENGTH | 12mm x 26.5m (0.47' x 87') |
| DIMENSIONS | 554 x 226 x 262mm (21.81 x 8.9 x 10.3') |
| MOUNTING PATTERN | 254 x 114.3mm (10 x 4.5') |
| WEIGHT | 68.8 KG (152 LBS) |
| MAX FLOW L/MIN | 45 |
| MAX PRESSURE MPA | 12.5 |
| CLUTCH | PULL & TURN |
| CERTIFICATION | CE CERTIFIED |
| LAYER OF ROPE / CABLE | LINE PULL: LBS (KGS) | ROPE ON DRUM FT (M) |
|---|---|---|
| 1 | 15000 (6804) | 18.0 (5.5) |
| 2 | 12120 (5498) | 41.7 (12.4) |
| 3 | 10168 (4612) | 65.9 (20.1) |
| 4 | 8757 (3972) | 86.9 (26.5) |
| LINE PULL: LBS (KGS) | LINE SPEED FT/MIN (M/MIN) | FLOW L/MIN • PRESSURE MPA |
|---|---|---|
| 0 | 1.6 (0.5) | 5 • 2.0 |
| 5000 (2268) | 3.3 (1.0) | 10 • 4.3 |
| 10000 (4536) | 6.6 (2.0) | 20 • 8.7 |
| 12000 (5443) | 9.8 (3.0) | 30 • 10.0 |
| 15000 (6804) | 19.7 (6.0) | 60 • 13.0 |
Manual
What Our Experts Think
The DK2 15,000lb NH Hydraulic Winch is a top-tier tool for heavy-duty recovery and lifting. Here’s why it’s a powerful choice for professionals:
- Impressive Capacity: With a 15,000lb weight capacity, this winch is designed to handle the toughest recovery tasks, including large vehicles and equipment.
- Hydraulic Power: Operates with hydraulic force, offering efficient, uninterrupted performance, ideal for continuous use without battery concerns.
- Built to Last: Constructed with high-strength steel and corrosion-resistant components to ensure longevity and reliability in harsh environments.
- Efficient and Smooth: Features a strong, durable drum and robust cable for smooth operation during both recovery and lifting tasks.
- Versatile Applications: Ideal for off-road recovery, industrial use, construction, and farm work where heavy-duty lifting is needed.
- Easy Mounting: Designed for straightforward installation on various vehicles, including trucks and trailers, ensuring versatility and convenience.
Q&A
Q: What are the key features of the DK2 15,000lb NH Hydraulic Winch?
A: The DK2 15,000lb NH hydraulic winch offers a 15,000 lb pulling capacity, powered by a hydraulic system for continuous and reliable performance. It is designed for heavy-duty applications such as off-road recovery, towing, and lifting.
Q: What type of power source does the winch use?
A: The winch operates using hydraulic power, providing strong and consistent performance when connected to a vehicle’s hydraulic system.
Q: What kind of rope is included?
A: The winch is equipped with a durable steel cable, providing strength and reliability for demanding tasks.
Q: Is the winch suitable for off-road use?
A: Yes, the DK2 15,000lb hydraulic winch is ideal for off-road recovery, construction, and other heavy-duty tasks in rugged environments.
Q: How is the winch controlled?
A: The winch comes with a remote control for easy operation from a safe distance.
Q: Does it come with a warranty?
A: Yes, the DK2 15,000lb NH hydraulic winch includes a 1-year limited warranty for added peace of mind.
Maintenance Tips
- Inspect Cable: Regularly check for signs of wear, fraying, or kinks. Replace if necessary.
- Lubricate Components: Apply grease to the winch drum, gears, and other moving parts to maintain smooth operation.
- Hydraulic Fluid Check: Monitor and maintain the correct hydraulic fluid level. Replace fluid as recommended.
- Test Functionality: Periodically test the winch to ensure both the in and out functions work properly.
- Clean After Use: Remove dirt, debris, and moisture to prevent corrosion and maintain performance.
- Tighten Fasteners: Check bolts, nuts, and other fasteners to ensure they are secure.
- Store Properly: Keep the winch in a dry, covered area to protect it from environmental damage.
