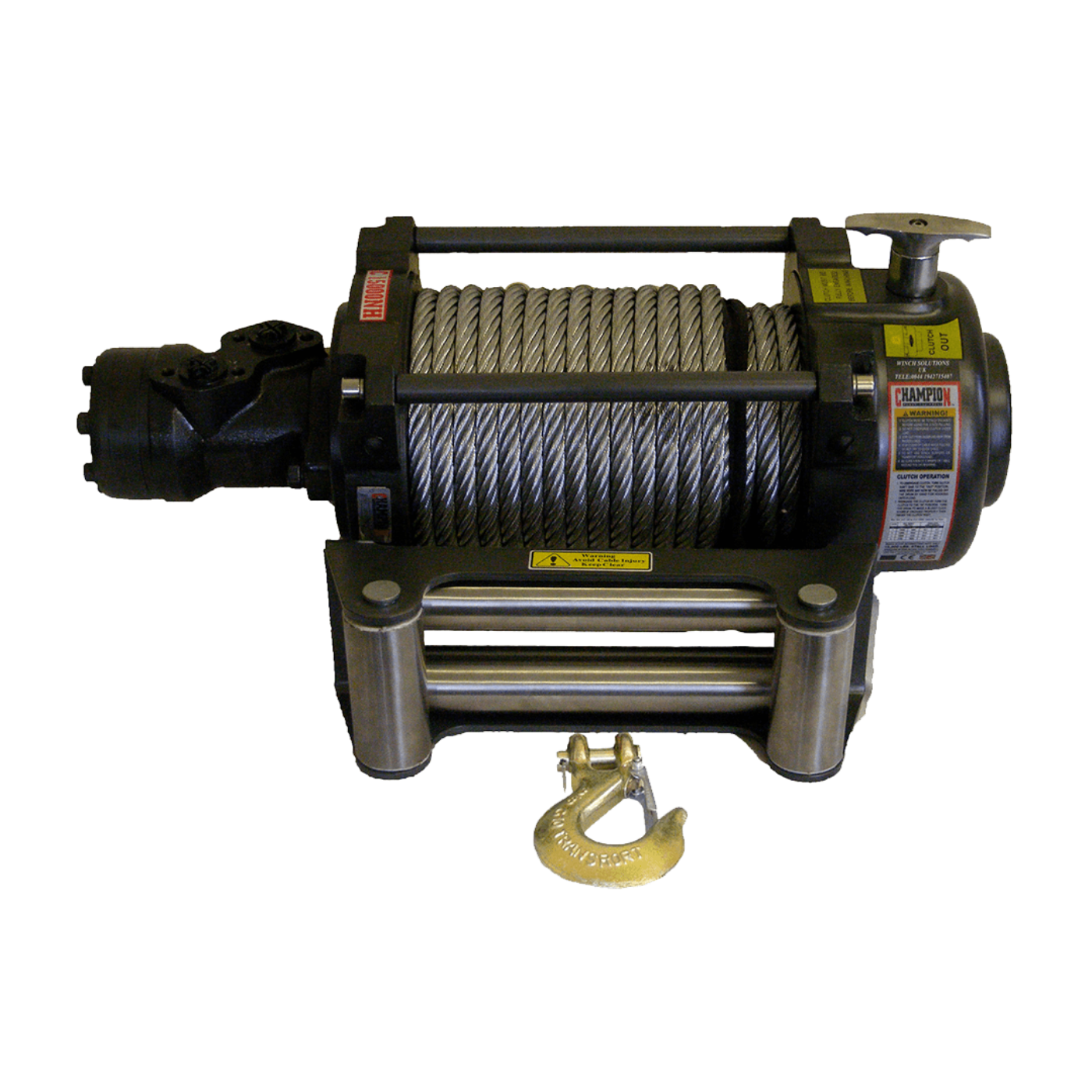

DK2 10,000lb NH Hydraulic Winch
COMPACT & TOUGH. WARRIOR HYDRAULIC WINCHES FOR INDUSTRIAL AND COMMERCIAL APPLICATIONS. VALUE WITHOUT COMPROMISE.
Compact, tough. A hydraulic winch for industrial and commercial applications. The unique
patented steel gearing system combined with a highly efficient and powerful hydraulic motor ensures
maximum performance over the full load range. Complete with internal brake to ensure maximum control
and load holding and backed by Warrior’s un-rivalled Limited Lifetime Warranty. Stainless steel roller fairleads and fittings are standard.
Features
-
Patented heavy duty gearing
-
Integral, automatic failsafe brake
-
Spring engaged manual freespool
-
Stainless steel fairlead and fittings
-
Rugged and compact for long life
Specification
| ITEM NUMBER | 10000NH |
|---|---|
| RATED LINE PULL | 10000 LBS (4536 KG) |
| MOTOR | HYDRAULIC DIS 65 ML/R |
| GEARING | 25.5:1 |
| DRUM SIZE - DIAMETER x LENGTH | 72 x 219mm (2.83 x 8.62') |
| CABLE - DIAMETER x LENGTH | 10.2mm x 25.5m (0.4' x 84') |
| DIMENSIONS | 519 x 206 x 246mm (20.43 x 8.1 x 9.7') |
| MOUNTING PATTERN | 254 x 114.3mm (10 x 4.5') |
| WEIGHT | 53 KG (117 LBS) |
| MAX FLOW L/MIN | 45 |
| MAX PRESSURE MPA | 12.5 |
| CLUTCH | PULL & TURN |
| CERTIFICATION | CE CERTIFIED |
| LAYER OF ROPE / CABLE | LINE PULL: LBS (KGS) | ROPE ON DRUM FT (M) |
|---|---|---|
| 1 | 10000 (4536) | 16.4 (5.0) |
| 2 | 8012 (3634) | 37.2 (11.3) |
| 3 | 6683 (3031) | 60.9 (18.6) |
| 4 | 5732 (2600) | 83.7 (25.5) |
| LINE PULL: LBS (KGS) | LINE SPEED FT/MIN (M/MIN) | FLOW L/MIN • PRESSURE MPA |
|---|---|---|
| 0 | 2.3 (0.7) | 5 • 2.0 |
| 3000 (1361) | 4.6 (1.4) | 10 • 4.5 |
| 6000 (2722) | 8.9 (2.7) | 20 • 6.8 |
| 9000 (4082) | 15.1 (4.6) | 35 • 9.0 |
| 10000 (4536) | 17.4 (5.3) | 40 • 12.5 |
Manual
What Our Experts Think
The DK2 10,000lb NH Hydraulic Winch is a powerful, reliable tool for heavy-duty lifting and recovery tasks. Here’s why it’s a must-have:
- High Capacity: With a 10,000lb capacity, this winch is ideal for pulling, lifting, or recovering large vehicles and equipment.
- Hydraulic Power: Operates using hydraulic power, ensuring smooth, efficient, and continuous performance without worrying about battery drain.
- Durable Construction: Built with a rugged steel frame and corrosion-resistant components to withstand tough environments.
- Easy Installation: Designed for quick and easy installation on a variety of vehicles, including trucks, ATVs, and trailers.
- Versatile Use: Perfect for off-roading, construction sites, or farm and ranch operations that require reliable winching power.
- Smooth Operation: Features a reliable drum and strong cable for smooth, consistent pulls, even in challenging conditions.
Q&A
Q: What are the key features of the DK2 10,000lb NH Hydraulic Winch?
A: The DK2 10,000lb NH hydraulic winch features a heavy-duty design with a 10,000 lb pulling capacity. It operates with hydraulic power for reliable performance, ideal for lifting or pulling heavy loads with ease.
Q: What is the power source for this winch?
A: The winch is powered hydraulically, offering efficient and continuous operation when connected to a vehicle’s hydraulic system.
Q: What type of rope does it use?
A: The winch comes equipped with durable steel cable, offering strength and durability for heavy-duty use.
Q: Is it suitable for off-road use?
A: Yes, the DK2 hydraulic winch is built for rugged conditions and is perfect for off-road recovery, towing, and other heavy-duty applications.
Q: How is the winch controlled?
A: The winch includes a remote control for convenient operation from a safe distance.
Q: Does it come with a warranty?
A: Yes, the DK2 10,000lb NH hydraulic winch comes with a 1-year limited warranty for added peace of mind.
Maintenance Tips
- Inspect Cables: Check for fraying, kinks, or wear. Replace the cable if damaged.
- Lubricate Parts: Grease the winch drum, gears, and moving components regularly to ensure smooth operation.
- Check Hydraulic Fluid: Ensure the hydraulic system is filled to the recommended level and replace fluid as needed.
- Test Operation: Periodically test the winch to ensure it functions properly, including both in and out operations.
- Clean After Use: Wipe down the winch to remove dirt, debris, and moisture to prevent corrosion.
- Secure Mounting: Check bolts and fasteners for tightness to prevent loosening during use.
- Protect from Elements: Store the winch in a dry area or cover it when not in use to avoid rusting or damage.
