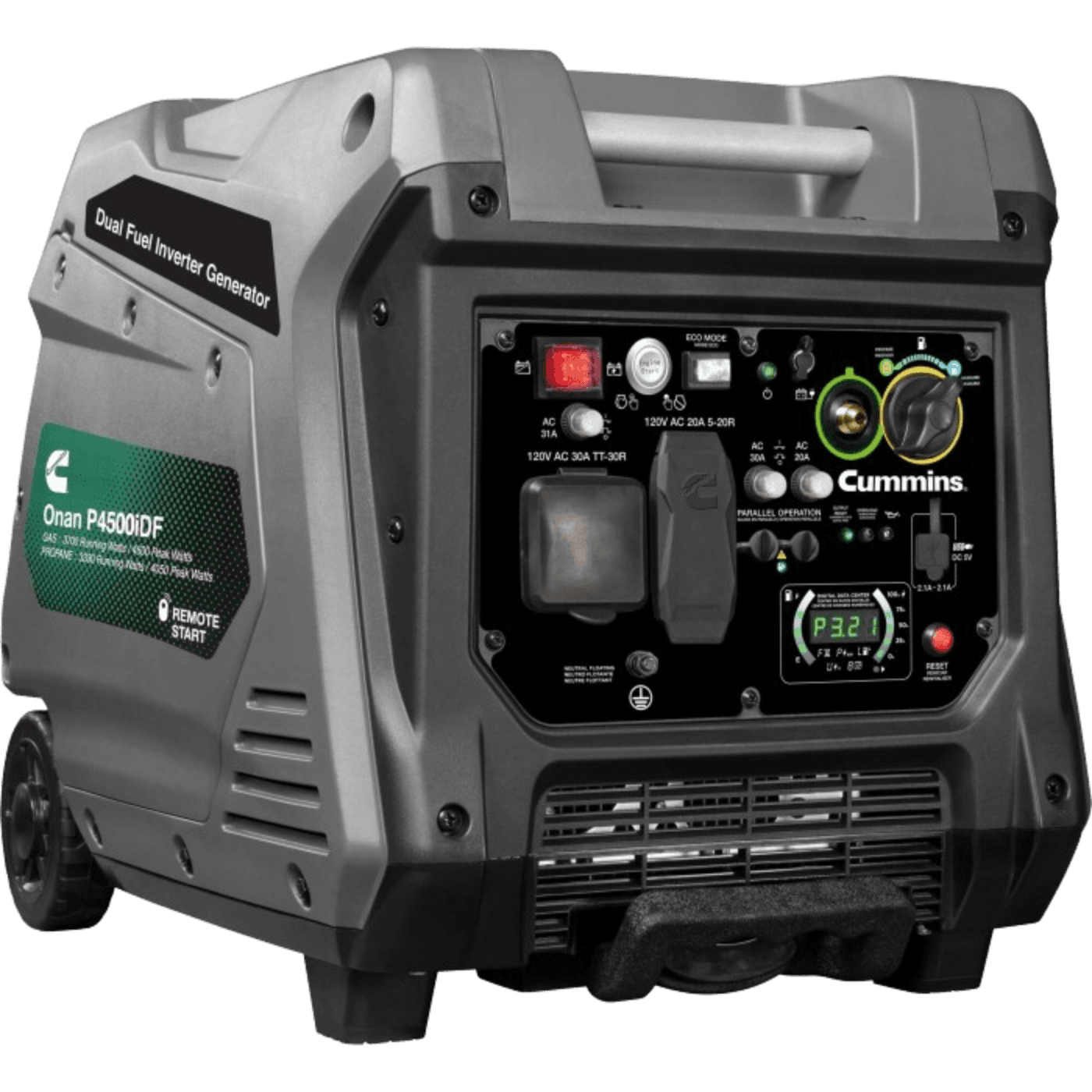

The P4500IDF operates utilizing either gasoline or propane fuel. This new model is very similar to the popular Onan P4500i, including many of the same features our dealers and customers have come to enjoy. These features include the telescoping handle, remote control starting, and easy to manage control panel.
RV and camper ready with 30 A TT-30R outlet. Two 5 V USB ports for charging sensitive electronics such as phones or tables. Dependable 224cc Cummins Onan OHV 4 stroke engine. Rubber outlet dust covers. This unit includes an LP hose and regulator.
Choke Type | Automatic |
---|---|
AC Outlets | (1) 120V 30A (TT-30R) (1) Duplex 120V 20A (5-20R) |
DC Outlets | (2) 5V USB ports |
Ground Floating | neutral |
Covered Outlets | Yes |
Manual Transfer Switch Ready | No |
GFCI Outlets | No |
LED Data Center | Yes |
RV-Ready Outlet | Yes |
Overload Protection (circuit breaker) | Yes |
Handle Style | Telescoping handle |
Emissions | EPA, CARB |
Canada CSA Compliant | Yes |
Wheel Kit Included | Yes |
Wheel Size | 5.5 in diameter, 1.5 in wide/thick |
Spark Arrestor | Yes |
Residential Warranty | 3 years |
Commercial Warranty | 1 year |
Assembled Length in (mm) | 25.5 in (648 mm) |
Assembled Width in (mm) | 18.12 in (460 mm) |
Assembled Height in (mm) | 20.5 in (520 mm) |
Carton Length in (mm) | 29.6 in (660 mm) |
Carton Width in (mm) | 21.5 in (546 mm) |
Carton Height in (mm) | 24.5 in (622 mm) |
Dry Unit Weight lb (kg) | 104.7 lb (47.6 kg) |
Part Number | A068H732 |
Gasoline – Peak Watts | 4,500 |
Gasoline – Running Watts | 3,700 |
Gasoline – Peak Amps at 120V | 37.5 amps |
Gasoline – Running Amps at 120V | 30.8 amps |
Propane – Peak Watts | 4,050 |
Propane – Running Watts | 3,330 |
Propane – Peak Amps at 120V | 33.8 amps |
Propane – Running Amps at 120V | 27.8 amps |
AC Voltage | 120 volts |
DC Voltage | 5 volts |
AC Frequency | 60 Hz |
Parallel Capable | Yes |
Total Harmonic Distortion (THD) | ≤3% |
Specification Sheet
Manual
Q&A for Cummins P4500iDF Generator
Q: What is the power output?
A: 3700W running, 4500W peak.
Q: Can it run on multiple fuels?
A: Yes, it supports gasoline and propane (dual fuel).
Q: Is it easy to start?
A: Yes, it features a remote start for convenience.
Q: Is it quiet?
A: Yes, it operates at a low noise level, ideal for camping or home use.
Q: What appliances can it power?
A: Suitable for RVs, appliances, and sensitive electronics.
Q: Is it portable?
A: Yes, it has built-in wheels and a telescopic handle.
Q: Does it include any safety features?
A: Yes, it has low oil shutdown and overload protection.
Q: Does it come ready to use?
A: Yes, includes all accessories for quick setup.
Q: What is the warranty?
A: Backed by Cummins' warranty and support.
