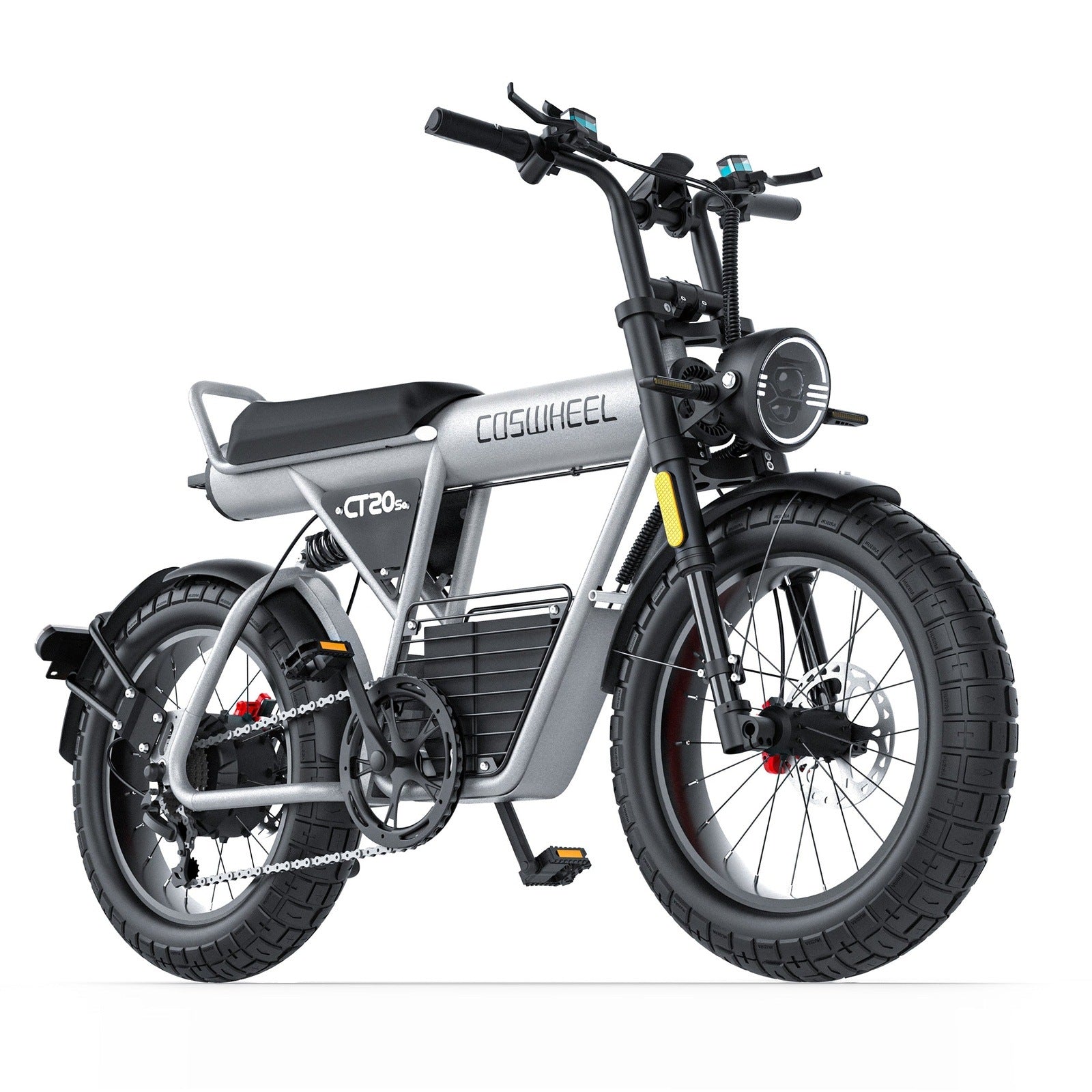

CT20S EBIKE

CT20S EBIKE

Performance

• Top Speed: Class 2/3, 28 Mph (45Km/h); Off-road Mode +++ (60V)
• Range: 55+miles (88km) in Class-2 throttle-only mode (pure electricity); 100+miles (161km) in Class-1 PAS (pedal assist)
• Motor: 60V Peak 2000W (Rated 1500W) Brushless Rear Hub Motor 120N.m
• Battery: 48V 35Ah Battery (Lithium 18650 Cells)
• Energy: 1650Wh
• Front Suspension: 20" Shoulder Shock Absorbing, 80mm Travel
• Rear Suspension: 180mm Travel
• Brakes: Double Piston Oil Brake, Equipped with 180mm Stainless Brake Disc
• Tires: Off-road Tire 20" * 5.0" IA-2149 with AV+Lining
• Throttle: Grip Twist Throttle

Electronics

• Charger: 60V5A Charger
• Charging Time: 3.5-8.0 Hours
• Display: Easy Read LCD Display
• Controller: 48V 35A
• Front Light: Classic Angel Eye Headlight, 120 LUX
• Rear Light: LED
• Pedal Assist: 5 Levels
• Sensors: Speed Sensor

Components

• Frame: Hydroformed Triple-Butted 6061-T6 Aluminium Alloy
• Pedal: Aluminum Alloy Pedal, with Reflect-light, Axis 9/16 x2
• Crank: 1/2 "*3/32"*46T 7-speed ED Tooth Plate
• Rear Derailleur: Shimano 7-Speed
• Chain: 7-speed Anti-rust, 1/2" * 3/32"
• Handlebars: Sand Black 31.8*660

Geometry

• Suitable Height: 5'1" - 6'5"
• Seat Height: 33.4" (85cm)
• Bike Height: 45.3" (115cm)
• Wheelbase: 45.3" (115cm)
• Handlebar Width: 26.4" (67cm)
• Bike Weight: ≥88lbs (with Battery) (≥40kg)
• Maximum Load: 330lbs (150kg)
• Safe Load: 265lbs (120kg)
• Overall Size: 70.9" * 26.4" *45.3" (180*67*115cm)
• Package Size: 59.4" * 14.2" * 35.4" (151*36*90cm)

What Our Experts Think

• Robust Build: Features a durable aluminum alloy frame designed to handle rough terrains and city streets alike.
• Efficient Motor: Equipped with a high-performance motor for quick acceleration and reliable power.
• Impressive Range: Offers up to 60 miles on a single charge, making it ideal for long commutes or adventures.
• Smart Features: Integrated LCD display provides real-time updates on speed, battery life, and riding mode.
• Comfortable Ride: Ergonomic seat and adjustable handlebars ensure rider comfort even on extended trips.

Q&A

Q: What is the maximum speed of the CT20S?
A: The CT20S can reach a top speed of 28 mph with pedal assist.

Q: How much weight can it support?
A: It has a weight capacity of up to 330 lbs.

Q: Can the bike be folded?
A: Yes, the CT20S features a foldable design for easy storage and transport.

Q: Is the battery waterproof?
A: The battery is water-resistant, making it suitable for light rain, but it’s recommended to avoid heavy downpours.

Q: Does it include built-in lights?
A: Yes, the bike comes with powerful LED front and rear lights for night riding.

Maintenance Tips

1. Charge Smartly: Always use the provided charger and avoid letting the battery drain completely.
2. Check Brakes: Inspect brake pads and cables regularly to maintain effective stopping power.
3. Lubricate Moving Parts: Apply lubrication to the chain and gears every few weeks to ensure smooth operation.
4. Inspect Tires: Keep tires inflated to the recommended PSI for better efficiency and safety.
5. Clean Properly: Use a damp cloth to clean the bike and avoid using high-pressure water.
6. Store Correctly: Keep the e-bike in a cool, dry place when not in use to prevent battery degradation.
