CT20 EBIKE

CT20 EBIKE

Performance

• Top Speed: Class 2/3, 28 Mph (45Km/h)
• Range: 50+miles (80km) in Class-2 throttle-only mode (pure electricity); 87miles (140km) in Class-1 PAS (pedal assist)
• Motor: 48V Peak 1500W (Rated 1000W) Brushless Rear Hub Motor 80N.m
• Battery: 48V 25Ah Battery (Lithium 18650 Cells)
• Energy: 1200Wh
• Front Suspension: 20" Shoulder Shock Absorbing, 80mm Travel
• Brakes: Double Piston Oil Brake, Equipped with 180mm Stainless Brake Disc
• Tires: Off-road Tire 20" * 5.0" IA-2149 with AV+Lining
• Throttle: Grip Twist Throttle

Electronics

• Charger: 48V3A Charger
• Charging Time: 3.5-8.0 Hours

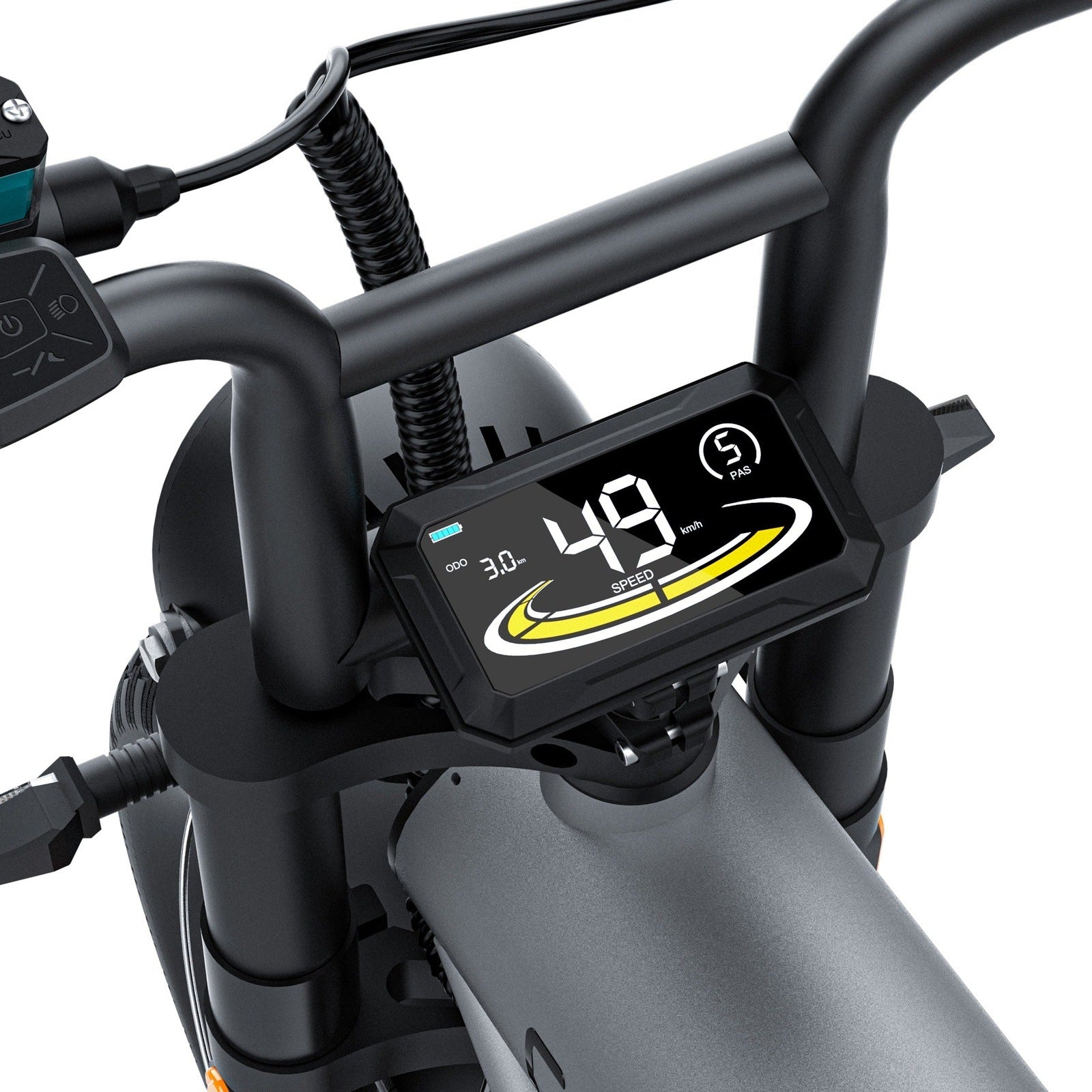

• Display: Easy Read LCD Display
• Controller: 48V 28A
• Front Light: Classic Angel Eye Headlight, 120 LUX
• Rear Light: LED
• Pedal Assist: 5 Levels
• Sensors: Speed Sensor

Components

• Frame: Hydroformed Triple-Butted 6061-T6 Aluminium Alloy
• Pedal: Aluminum Alloy Pedal, with Reflect-light, Axis 9/16 x2
• Crank: 1/2 "*3/32"*46T 7-speed ED Tooth Plate
• Rear Derailleur: Shimano 7-Speed
• Chain: 7-speed Anti-rust, 1/2" * 3/32"
• Handlebars: Sand Black 31.8*660

Geometry

• Suitable Height: 5'1" - 6'5"
• Seat Height: 33.4" (85cm)
• Bike Height: 45.3" (115cm)
• Wheelbase: 45.3" (115cm)
• Handlebar Width: 26.4" (67cm)
• Bike Weight: ≥88lbs (with Battery) (≥40kg)
• Maximum Load: 330lbs (150kg)
• Safe Load: 265lbs (120kg)
• Overall Size: 70.9" * 26.4" *45.3" (180*67*115cm)
• Package Size: 59.4" * 14.2" * 35.4" (151*36*90cm)

What Our Experts Think

• Versatile and Reliable: The CT20 E-Bike is a versatile option designed for urban commutes, recreational rides, and light off-road trails, combining efficiency with durability.
• Powerful Motor: Equipped with a high-performance motor, the CT20 provides smooth acceleration and reliable power, perfect for various terrains.
• Long-Lasting Battery: Enjoy extended rides with a robust battery offering up to 50 miles of range on a single charge, depending on assist levels and terrain.
• Comfort-Focused Design: The CT20 features an ergonomic frame, adjustable seat, and front suspension for a comfortable and stable ride.
• Modern Features: With a user-friendly LCD display, multiple assist levels, and built-in lights, the CT20 ensures safety and convenience.

The CT20 E-Bike is an excellent choice for riders seeking an efficient and comfortable e-bike that’s built to perform in various settings.

Q&A

Q: How fast can the CT20 E-Bike go?
A: The CT20 can reach speeds up to 20 mph with pedal assist or throttle mode, making it ideal for quick commutes.

Q: Is the CT20 suitable for hilly terrain?
A: Yes, the powerful motor and multiple assist levels make it easy to tackle hills and inclines with ease.

Q: What is the weight capacity of the CT20?
A: The CT20 is designed to support riders and cargo with a combined weight of up to 300 lbs.

Maintenance Tips

• Battery Care: Charge the battery regularly and avoid over-discharging to maximize its lifespan.
• Tire Inspection: Check tire pressure and tread condition frequently for safe and efficient rides.
• Chain Maintenance: Clean and lubricate the chain periodically to ensure smooth operation.
• Brake Check: Test the brakes before each ride and replace pads if they show signs of wear.
• Store Properly: Keep the CT20 in a dry, covered area when not in use to protect it from the elements.
• Schedule Servicing: Have the e-bike professionally serviced at least once a year to maintain optimal performance.
