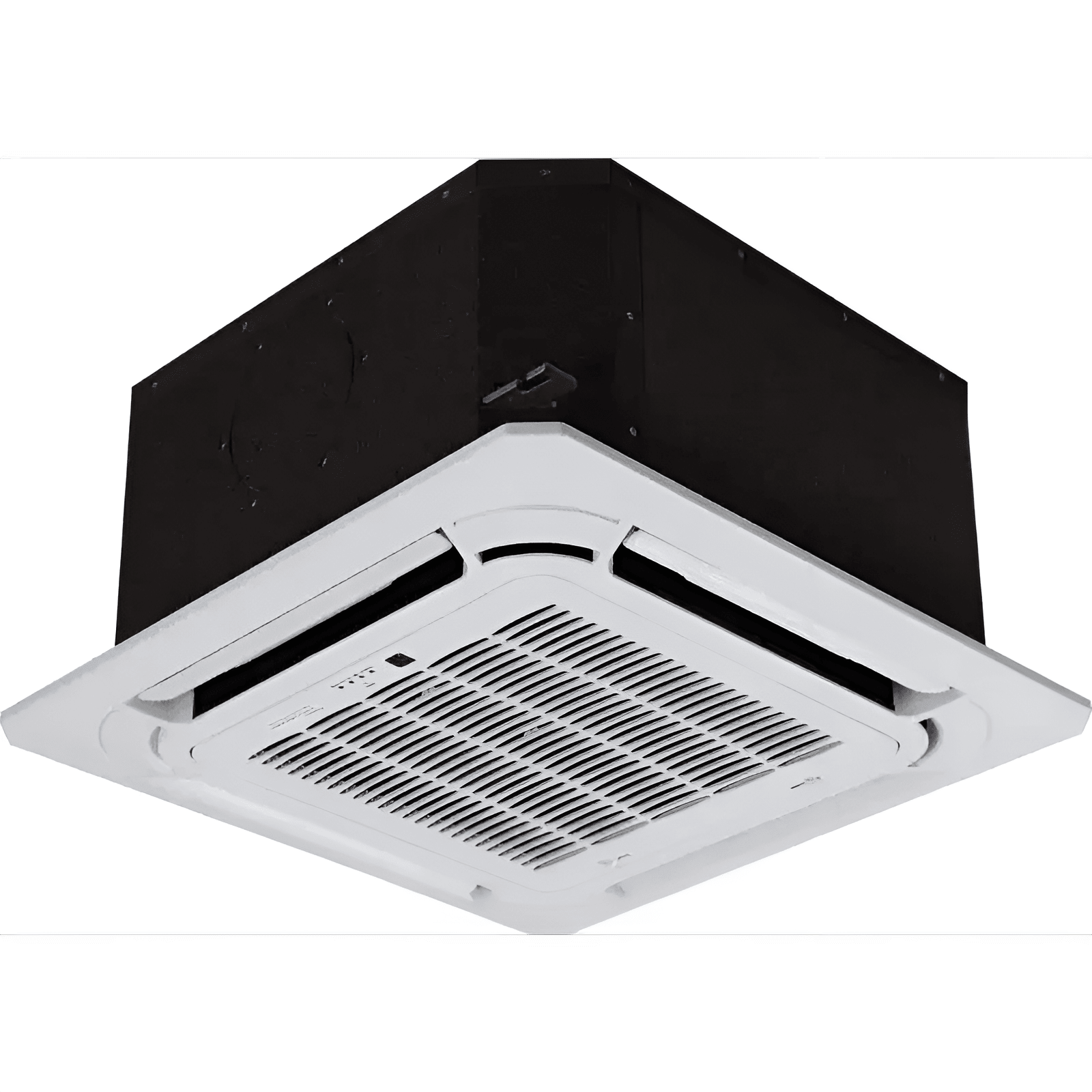

ACiQ 12,000 BTU Ceiling Cassette Mini-Split Air Handler
ACiQ's ACIQ-12CC-HH-MB ceiling cassette air handler offers a discreet solution for customers who want to avoid having the air handler on their wall. This option provides centralized air distribution with a hidden appearance, while maintaining the same high-efficiency heating and cooling as a regular wall-mounted unit. Conveniently, it also comes with a hand-held remote control for easy operation. Once the air handler is mounted into the ceiling, only the grille is visible, creating a subtle and understated aesthetic.
Installation
Ceiling Cassettes are designed to be flush-mounted, requiring removal of ceiling material to create space for the unit. These units can fit between 24 on-center joists, but not between 16 on-center joists without structural modifications. They also feature factory-installed pumps to lift condensation, which can be elevated up to 14 feet. A PVC drain system will need to be constructed to safely remove the condensed water. Refrigerant and wiring connections are identical to those used in wall mounted units.
Features
- 12,000 btu of Heating or Cooling
- Dry and Fan modes also available
- Good for a small room in most climates
- 4 Way Air Supply for consistent room coverage
- Handheld remote included
- Decorative Grille included
Specifications
| SKU | ACIQ-12CC-HH-MB / ACIQ-CC-GRILLE |
|---|---|
| Weight (in lbs) | 41.010000 |
| Brand/Manufacturer | ACiQ |
| Controller | Wireless Included |
| Cooling BTU | 12,000 BTU |
| Heating BTU | 12,000 BTU |
| Maximum CFM | 335.29 |
| Decibel Level (dBA) | As low as 31.5 |
| Electric Heat | Heat Pump |
| Refrigerant | R410A |
| Capacity | Dehumidification Rate: 0.45 gal/hr |
| SEER2 (Efficiency) | 22.3 |
| Liquid Line | 1/4' |
| Suction Line | 1/2' |
| Electrical | 208/230V 1 Phase 60Hz |
| Phase | Single Phase |
| Max Breaker Size | 15 |
| Min. Breaker Size | 15 |
| BTU/Tonnage | 12,000 BTU/1 Ton |
| Mini-Split Type | Ceiling Cassette |
| Zone Compatibility | Multi Zone |
| Height | 10.25' |
| Width | 22.5' |
| Depth | 22.5' |
| Warranty | 12 year compressor, 7 year parts with online registration |
What Our Experts Think
- Efficient Cooling: Ideal for cooling large or open spaces with even distribution.
- Sleek Design: Discreet ceiling-mounted unit blends seamlessly into the room’s aesthetic.
- Energy Saving: With a high SEER rating, it delivers exceptional cooling while keeping energy costs low.
- Quiet Operation: Runs quietly, providing comfort without disruptive noise.
- WiFi Control: Smart connectivity allows easy remote control via your smartphone or tablet for added convenience.
Q&A
Q1: What is the cooling capacity of this unit?
A1: The ACiQ 12,000 BTU Ceiling Cassette Mini-Split Air Handler provides efficient cooling for rooms up to 500 square feet.
Q2: Can I control the unit remotely?
A2: Yes, this unit features WiFi connectivity, allowing you to control it remotely via a smartphone app.
Q3: Is this unit noisy during operation?
A3: No, the ceiling cassette operates quietly, ensuring a comfortable and peaceful environment.
Q4: How do I maintain the unit?
A4: Regular maintenance includes cleaning the filters monthly and having the system professionally serviced annually.
Q5: Can I install this unit myself?
A5: While the system is designed for easy installation, it is recommended to have a professional HVAC technician install it for optimal performance and warranty protection
Maintenance Tips
- Clean Filters Regularly: Remove and clean filters every 4-6 weeks to maintain airflow and efficiency.
- Check Drainage: Ensure the condensate drain is clear to prevent water buildup and mold growth.
- Inspect Coils: Clean the evaporator and condenser coils annually to keep them free of dirt and debris.
- Keep Vents Clear: Ensure vents and air intakes are unobstructed for optimal airflow.
- Professional Service: Have the system professionally serviced once a year to check refrigerant levels and system performance.
