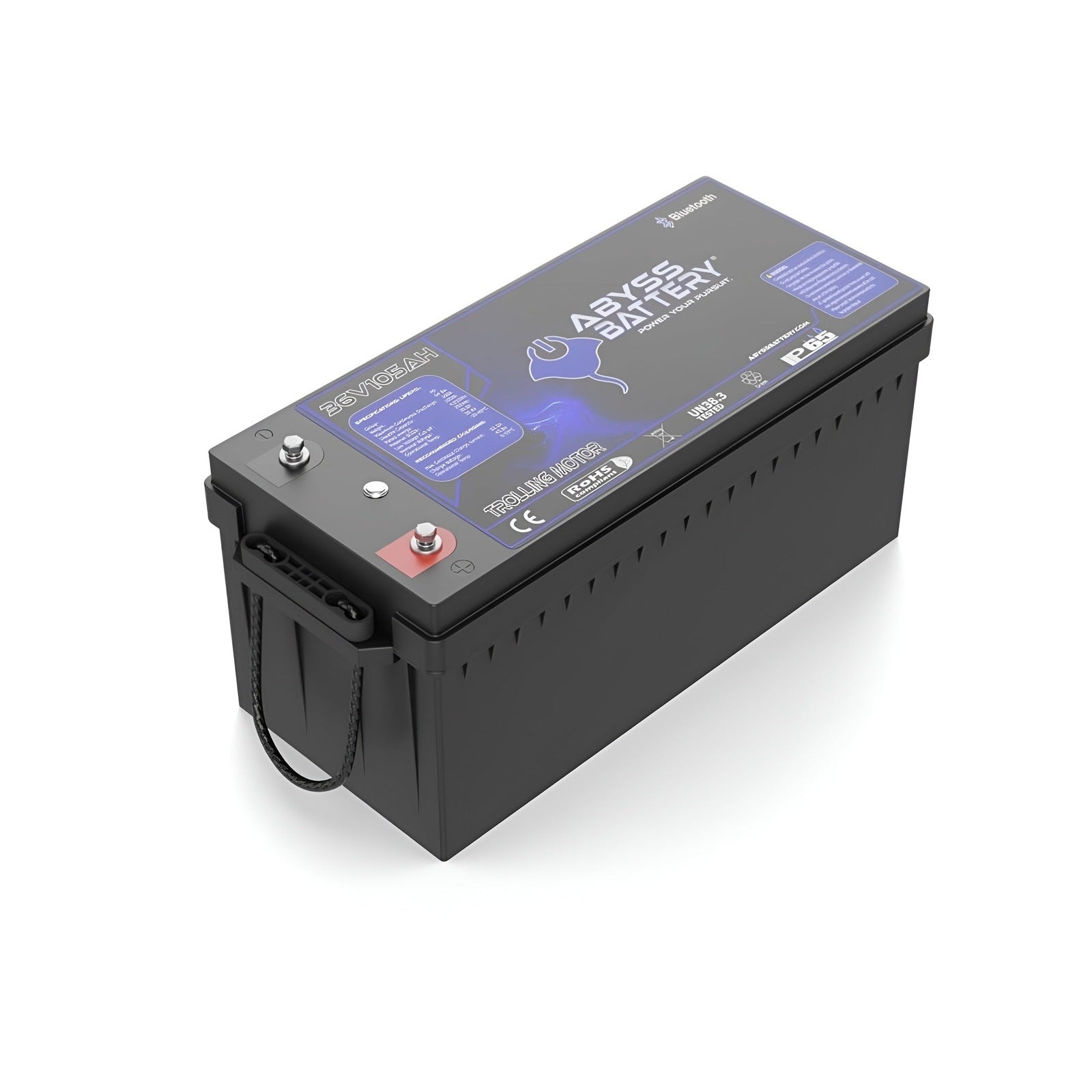

Abyss Battery 36v 105ah Lithium Golf Cart Battery - AB-36V105-BT
Swap your unreliable lead-acid batteries for a powerful ABYSS® 36V 105Ah Lithium Golf Cart Battery. This single group 4D lithium battery is compact, lightweight, and will free up storage space in your golf cart by replacing three 12 volt Lead-acid or AGM group 31 batteries in series.
Whether you’re driving around the neighborhood, or out on the golf course, this battery will back you up even with load-heavy consumption. Ideal for deep cycle applications in diverse environments, seasons, and temperatures for E-Z-Go Golf Carts models. Our 36V 105Ah Lithium Battery gives you a long and steady draw to last even for multi-day trips. Just set it, charge it, and off you go.
Features
-
Higher qualified Grade-A cylindrical cells: UL1642, IEC62619, IEC62133 listed with Cycle life more than 3000 times and excellent consistency.
-
Bluetooth Connectivity: Monitor the battery status (charge, discharge, current, temperature, cycle life and so on) and change the data for different applications.
-
Built-in Heating: Uniform internal heating is an important feature of our cold-weather performance batteries, as many external heating blanket options currently available cannot sense the internal temperature of the cells and may not be completely effective at heating the battery throughout. Our system features proprietary technology that draws power from the charger itself, requiring no additional components. The entire process of heating and charging is completely seamless. Simply plug the battery into our lithium charger and the internal heating and monitoring system takes care of the rest.
-
More stable and firm internal structure: The cell holders within our battery protect and separate each cell to avoid any short circuit risks caused by intense vibration or impact. The separation and space created between each cell also improves the overall heat dissipation within the battery pack while charging and discharging.
Specifications
| TECHNICAL SPECIFICATIONS | DETAILS |
|---|---|
| Nominal Voltage | 38.4V |
| Nominal Capacity | 105Ah |
| Parallel Connection | Maximum 6 units |
| Series Connection | No |
| Bluetooth Management System (BMS) | 12S100A (Available on Android/iOS) |
| Charge Voltage | 43.2±0.6 |
| Standard Charge Current | 21A |
| Fast Charge Current | 52A |
| Max. Continuous Discharge Current | 100A |
| Peak Discharge Current | 700A (300ms) |
| Discharge Cut-off Voltage | 30V |
| Cycle Life | 3000 cycles @ 100% Depth of Discharge (DOD) and 6000 cycles @ 80% DOD |
| Self Discharge Rate | Less than 3% per month |
| Charge Efficiency | 100% @0.2C |
| Discharge Efficiency | 98-100% @1C |
| Operating Charge Temperature Range | 0°C to 55°C (32°F to 131°F) |
| Operating Discharge Temperature Range | -20°C to 60°C (-4°F to 140°F) |
| Storage Temperature Range | -5°C to 45°C (23°F to 113°F) |
| Dimensions | 20.47" x 9.44" x 8.66" in |
| Approximate Weight | 61 lbs (29 Kg) |
| Terminal Type | M8 |
| Case | Color/Material: Black Plastic case (ABS) |
| IP Rating | IP65 |
| Cell Type | Cylindrical LiFePO4 cell |
| Cell Holder | Yes |
Product Manual
Product Manual - AB-36V105-BT
What Our Experts Think
- Long-lasting Power: The 36V 105Ah battery provides consistent, reliable power for your golf cart, ensuring a longer run time.
- Efficient Charging: With its advanced lithium technology, this battery charges faster and lasts longer than traditional lead-acid batteries.
- Eco-Friendly: Lithium batteries are more environmentally friendly, offering a longer lifespan and less waste.
- Maintenance-Free: Enjoy a hassle-free experience as this battery requires minimal maintenance compared to other types.
- Durable Construction: Designed to withstand tough conditions, it offers superior performance in all weather and terrain.
Q&A
Q: How long does the Abyss 36V 105Ah Lithium Golf Cart Battery last?
A: The battery can last up to 10 years, offering significantly longer lifespan than traditional lead-acid batteries.
Q: Can I use this battery in all weather conditions?
A: Yes, the 36V 105Ah lithium battery is built to perform in a variety of weather conditions, ensuring reliable power year-round.
Q: How long does it take to charge the battery?
A: It typically takes 4-6 hours to fully charge, depending on the charger used.
Q: Is this battery maintenance-free?
A: Yes, this lithium battery requires minimal maintenance, unlike traditional lead-acid batteries.
Q: Can I install this battery myself?
A: Yes, with its user-friendly design, installation is straightforward, though professional installation is recommended for optimal performance.
Maintenance Tips
- Regular Charging: Charge the battery after each use to maintain optimal performance.
- Avoid Deep Discharges: Do not let the battery discharge below 20% to extend its lifespan.
- Storage: Store the battery in a cool, dry place, ideally at 50-80% charge, when not in use for extended periods.
- Check Connections: Periodically inspect battery terminals for corrosion and clean them if necessary.
- Keep Dry: Ensure the battery stays dry and free of moisture to prevent damage.
- Use Compatible Charger: Always use the recommended charger for efficient and safe charging.
