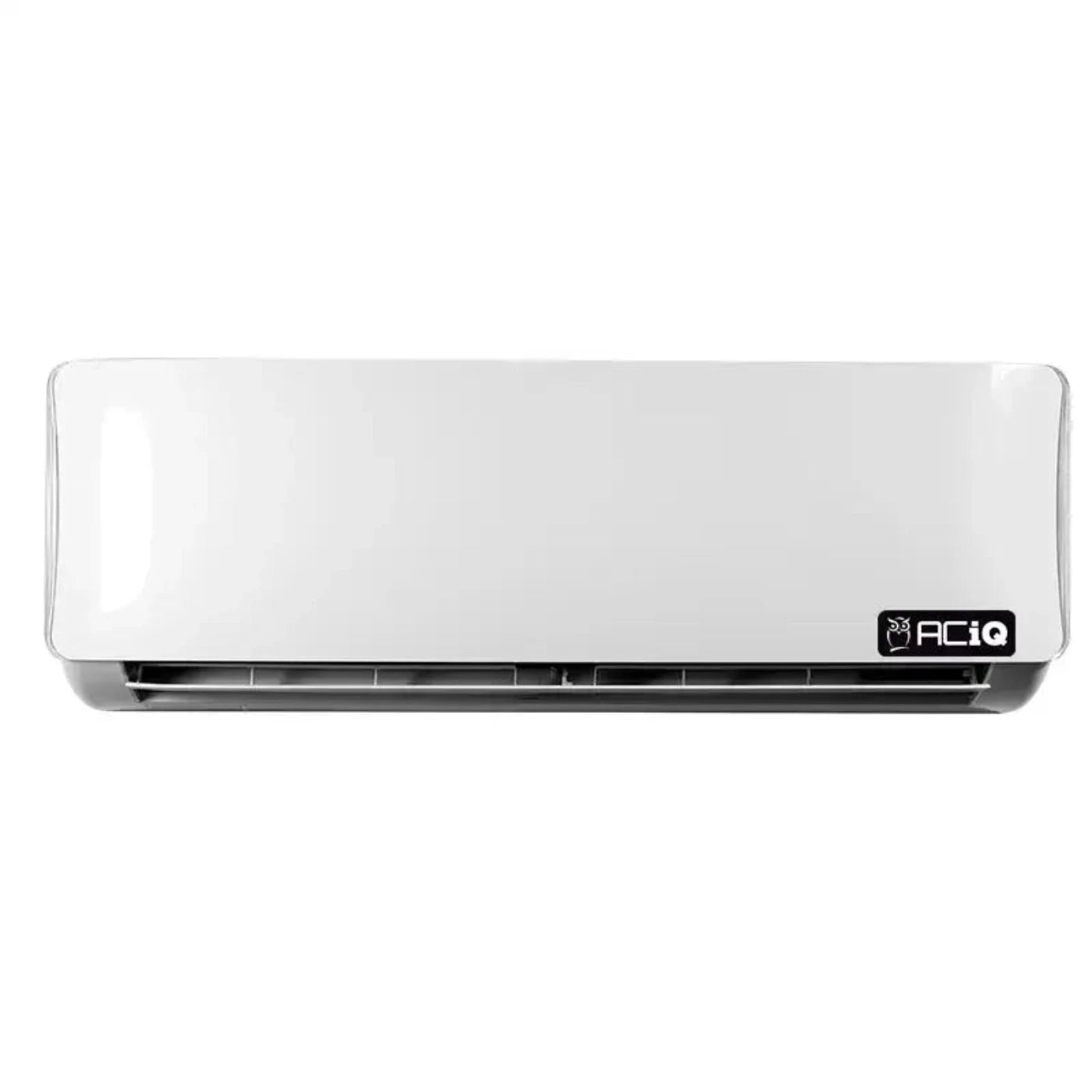

12,000 BTU 20.8 SEER2 ACiQ Single Zone Wall Mounted Mini Split System w/ WiFi - 115V

The ACiQ system is carefully crafted to rapidly reach and maintain the desired temperature, regardless of external conditions. Featuring serene indoor and outdoor units, the ACiQ ensures a tranquil environment at all times. Our mini split systems offer advanced technology and exceptional comfort, all at an affordable price. Single zone systems are ideal for enhancing a basement or garage conversion, or for cooling a specific area within your residence.

ACiQ is a brand that aims to enhance your home's comfort by providing intelligent solutions for purchasing, installing, and maintaining air conditioning systems. The ACiQ-12W-HP115B single zone air handler is equipped with adaptive technology to constantly monitor and adjust the temperature, ensuring optimal comfort throughout the day and night, regardless of changing weather conditions. With a coverage area of up to a small room in ideal conditions, this 12,000 BTU wall-mounted air handler offers affordable, remote-controlled intelligent comfort.

The ACiQ-12W-HP115B air handler is designed with a soft LED display on the front of the unit giving you information at a glance. The display shows room temperature by default but can also show temperature setpoint changes and mode changes. To ensure your unit runs properly throughout its lifetime, this display will also show any error codes from its self-diagnosing control board. The display can be switched off if desired, and the included smart remote has a built-in LCD display to show these notifications as well.

ACiQ is WiFi ready! The wall mounted air handlers come with everything you need to control your home's heating and cooling via smart device (iOS or Android) from anywhere in the world. ACiQ is also compatible with Amazon Alexa and Google Assistant.

Please note that in order to function, this air handler must be installed with a condenser and other installation equipment, available at an additional cost if not already included in this product bundle.

Traditional wall-mounted air handlers are the most popular ductless choice  due to low cost and ease of installation.  Wall mounted units are located high on an outside wall, with refrigerant lines and condensation drain hose exiting the back through a 3' wall penetration.  Return air is brought in through vents in the top of the unit, and cooled or heated air exits the lower front through a sweepable louver.  Wall mounted air handlers are WiFi compatible and can be controlled by the free NetHome Plus app or by voice assistants such as Alexa or Google Home.

Specs

12,000 BTU ACiQ Single Zone Condenser - 115V
SKU	ACiQ-12Z-HP115B
Refrigerant Charge	25'
Weight (in lbs)	62.170000
Brand/Manufacturer	ACiQ
HSPF2	8.7
Cooling BTU	12000 BTU
Heating BTU	12000 BTU
Maximum CFM	341.18
Decibel Level (dBA)	55.5 max
Electric Heat	Heat Pump
Refrigerant	R410A
SEER1 (Efficiency)	18-20
Compressor Type	Rotary
Liquid Line	1/4'
Suction Line	1/2'
Electrical	115V 1 Phase 60 Hz
Max Breaker Size	30
Min. Breaker Size	20
Tonnage	0.75 Ton
BTU/Tonnage	9,000 BTU/0.75 Ton
Mini-Split Type	Wall Mounted
Zone Compatibility	Single Zone
Height	21.85'
Width	30.12'
Depth	11.93'
Warranty	12 year compressor, 7 year parts with online registration
Resources	You will need Adobe® Acrobat® Reader to view PDF documents.
Safety Information	PROPOSITION 65 WARNING This product and many products on our site may contain a chemical know to the state of California to cause cancer or birth defects or other reproductive harm.
12,000 BTU ACiQ Single Zone Air Handler w/ WiFi- 115V
SKU	ACiQ-12W-HP115B
Weight (in lbs)	19.840000
Brand/Manufacturer	ACiQ
Cooling BTU	12000 BTU
Heating BTU	12000 BTU
Maximum CFM	341.18
Decibel Level (dBA)	41.5/30.5/26
Electric Heat	Heat Pump
Refrigerant	R410A
Liquid Line	1/4'
Suction Line	1/2'
Electrical	115V 1 Phase 60 Hz
BTU/Tonnage	12,000 BTU/1 Ton
Mini-Split Type	Wall Mounted
Zone Compatibility	Single Zone
Height	11.69'
Width	31.57'
Depth	7.44'
Warranty	12 year compressor, 7 year parts with online registration
Resources	You will need Adobe® Acrobat® Reader to view PDF documents.
Safety Information	PROPOSITION 65 WARNING This product and many products on our site may contain a chemical know to the state of California to cause cancer or birth defects or other reproductive harm.

What Our Experts Think

• Energy Efficiency: With a 20.8 SEER2 rating, this system delivers excellent energy savings, making it ideal for long-term use in residential or small commercial spaces.
• WiFi Control: The integrated WiFi feature allows for remote control via smartphone, offering ultimate convenience and flexibility.
• Quiet Operation: The wall-mounted design and advanced compressor technology ensure minimal noise, providing a peaceful indoor environment.
• Fast Cooling: The 12,000 BTU capacity cools rooms efficiently, providing immediate relief during hot weather.
• Eco-Friendly: Uses eco-friendly refrigerants, making it a sustainable choice for users looking to reduce their carbon footprint.
• Easy Installation: The system is designed for quick installation, reducing downtime and ensuring fast, reliable cooling.

Q&A

Q: What is the cooling capacity of this mini split system?

A: This mini split system has a cooling capacity of 12,000 BTU, perfect for cooling single rooms up to 500 square feet.

Q: Does this system come with Wi-Fi capability?

A: Yes, it comes with built-in Wi-Fi, allowing you to control the system remotely via the ACiQ app for added convenience.

Q: What is the energy efficiency rating of this mini split system?

A: The system has a 20.8 SEER2 rating, providing high energy efficiency to reduce your cooling costs.

Q: Is this system suitable for residential use?

A: Yes, it is ideal for residential applications, offering effective and quiet cooling for bedrooms, living rooms, or small offices.

Q: What type of power supply is required for this unit?

A: The system operates on a 115V power supply, which is commonly available in residential settings.

Q: Can this unit be installed by a professional?

A: Yes, professional installation is recommended for optimal performance and to ensure compliance with local regulations.

Maintenance Tips

• Clean the filters regularly: Check and clean the air filters every 1-2 months to maintain airflow and efficiency.
• Check for blockages: Ensure there are no obstructions around the outdoor unit to allow proper airflow and avoid overheating.
• Inspect the coils: Clean the evaporator and condenser coils annually to prevent dirt buildup, which can reduce cooling efficiency.
• Check the refrigerant levels: Low refrigerant can reduce system performance. Have a professional check levels annually.
• Clear the drainage system: Ensure the condensate drain is not blocked to avoid water leakage or damage.
• Schedule annual professional servicing: A technician should inspect the system for any issues and ensure optimal performance.
